Baldwin DS-4-4-660

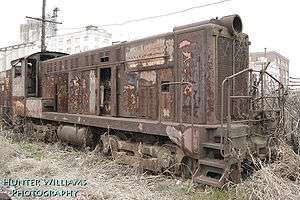

A very rusty Baldwin DS-4-4-660 locomotive sits next to the NS main in Roanoke, VA. This is one of "The Lost Engines of Roanoke" and is Chesapeake Western #663.

Type and origin
Power type	Diesel-electric
Builder	Baldwin Locomotive Works
Build date	June 1946 to May 1949
Total produced	139

Specifications
AAR wheel arr.	B-B
Gauge	4 ft 8 ¹⁄₂ in (1,435 mm)
Length	46 ft 6 ¹⁄₄ in (14.18 m)
Width	9 ft 11 ¹⁄₄ in (3.03 m)
Height	14 ft (4.27 m)
Loco weight	196,600 lb (89,200 kg)
Prime mover	606NA
RPM range	625 rpm max.
Engine type	Four-stroke diesel
Aspiration	Normally aspirated, solid injection
Displacement	1,979 cu in (32.43 L) per cylinder 11,874 cu in (194.58 L) total
Generator	DC type 480
Traction motors	West’hse 362-D
Cylinders	Straight-6
Cylinder size	12 ³⁄₄ in × 15 ¹⁄₂ in (324 mm × 394 mm))
Loco brake	Air
Train brakes	Air

Performance figures
Power output	660 hp (492 kW)
Tractive effort	56,500 lb (25,600 kg)

Career
Locale	North America

The Baldwin DS-4-4-660 was a four-axle 660 horsepower (490 kW) diesel-electric switcher built by the Baldwin Locomotive Works at it Eddystone, Pennsylvania factory between 1946 and 1949. It replaced the 660 horsepower (490 kW) VO-660 in their catalog, and was in turn replaced by the 750 horsepower (560 kW) DS-4-4-750. It was the low power companion to Baldwin's DS-4-4-1000 models.

Original owners

Railroad	Quantity	Road numbers
American Cyanamid Company	1	13
American Rolling Mill Company	1	1001
Chesapeake Western Railway	3	661–663
Chicago, St. Paul, Minneapolis and Omaha Railway (“Omaha Road”)	1	71
Chicago and North Western Railway	3	1259–1261
Crows Nest Pass Coal	1	1
Escanaba and Lake Superior Railroad	1	101
Erie Railroad	5	381–385
Georgia Northern Railway	1	102
Long Island Rail Road	4	409–412
New Orleans Public Belt Railroad	6	44–49
Norfolk Southern Railway	3	661–663
Patapsco and Back Rivers Railroad	4	306–309
Pennsylvania Railroad	99	5957–5966, 9000–9049, 9110–9121, 9210–9236
Sloss-Sheffield Steel	1	30
Tennessee Valley Authority	1	100
Wabash Railroad	2	201–202
Wyandotte Southern Railroad	1	D100
Wyandotte Terminal Railroad	1	104
Total	139
