Cordouan Lighthouse

Cordouan lighthouse

Cordouan Lighthouse, November 2006
Location Gironde, France
Coordinates 45°35′10.84″N 1°10′24.48″W / 45.5863444°N 1.1734667°W / 45.5863444; -1.1734667Coordinates: 45°35′10.84″N 1°10′24.48″W / 45.5863444°N 1.1734667°W / 45.5863444; -1.1734667
Year first constructed 1611
Year first lit 1788
Foundation 3-storey cylindrical basement
Construction stone tower
Tower shape conical tower with three galleries and lantern
Markings / pattern unpainted light gray tower, darker gray gallery and lantern
Height 223 feet (68 m)
Focal height 197 feet (60 m)
Original lens First order Fresnel lens
Range white 22 nautical miles (41 km; 25 mi)
red/green 18 nautical miles (33 km; 21 mi)
Characteristic Occ. W R G (depending on direction) 12s
Admiralty number D1300
NGA number 13-1480
ARLHS number FRA-007[1]

Cordouan lighthouse is an active lighthouse located 7 kilometres (4.3 miles) at sea, near the mouth of the Gironde estuary in France. At a height of 223 feet (68 m), it is the tenth-tallest "traditional lighthouse" in the world.[2]

The Tour de Cordouan, the 'Patriarch of Lighthouses', is by far the oldest lighthouse in France. It was designed by leading Paris architect Louis de Foix, and is something of a Renaissance masterpiece, an amalgam of royal palace, cathedral and fort. Started in 1584 and finished in 1611, it still stands today.

History

Small beacon towers had existed on the islet since 880, but the first proper structure was implemented by Edward, the Black Prince, as Guienne was then an English province. It was 48 feet (15 m) high, with a platform on top where a wood fire could be kept burning, and manned by a religious hermit. Passing ships paid two groats to pass - the first known instance of lighthouse dues. In addition to the tower, a small chapel was built on the islet. By the second half of the 16th century the tower had fallen into disrepair and the hazard to navigation threatened the Bordeaux wine trade. This led to the construction of the current Tour de Cordouan.

Design

Engraving of the original tower finished in 1611

De Foix first built a round base 135 feet (41 m) in diameter and 8 feet (2.4 m) high to take the onslaught of the waves. Within it was a 20-square-foot (1.9 m2) cavity for storing water and other supplies. Above it were constructed four storeys of diminishing size. The ground floor consisted of a circular tower 50 feet (15 m) in diameter, with apartments for four keepers around its inner wall. In the centre was a richly decorated entrance hall 22 square feet (2.0 m2) and 20 feet (6.1 m) high. The second storey was the King's Apartment, consisting of a drawing room, anteroom and a number of closets. The third storey was a chapel with a domed roof notable for the beauty of its mosaic. Above this was secondary lantern, and above that the Lantern itself. This was 162 feet (49 m) above the sea and visible 5–6 miles away, the original light being provided by burning oak chips in a metal container.

Throughout the building, de Foix took as much trouble with the decor as with the durability of the building, and on every floor was a profusion of gilt, carved work, elegantly arched doorways and statuary.

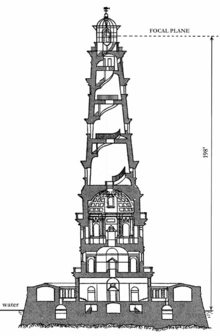

Architectural drawing of the Cordouan lighthouse as extended in 1790.

Extension

The first parabolic lamps were added in 1782, but the lighthouse was in very poor condition. Sailors also criticized the lack of height of the light. Major renovations were needed. They were carried out from 1782 to 1789 by the engineer Joseph Teulère who suggested enhancing the 30-metre tower, retaining the ground floor and two floors, in the Louis XVI style, the simplicity of which contrasted with the wealth of the lower floors, which retained their Renaissance decoration.

In 1790, after the lighthouse was raised 60 meters above the highest tides, Teulère devised the first turning lighting dish. It consisted of Argand lamps turned by a machine built by a watchmaker in Dieppe. The fuel was a mixture of whale, olive and rapeseed oil.

The first Fresnel lens rotating system, the invention of Augustin-Jean Fresnel, was installed in Cordouan in 1823. Three concentric lamp wicks, supplied with rapeseed oil by means of a suction and force pump, were placed in the focal plane of the apparatus.

It was restored in 1855 and made a historical monument in 1862, at the same time as Notre-Dame de Paris. The Fresnel lens was replaced by the present lens in 1854.

The light was converted to petroleum gas in 1907 and to electricity in 1948, when a 6,000W lamp was used. It was fully automated in 2006, although lighthousekeepers are still employed, partly to show visitors around. [3] The lamp was replaced by a 450W xenon lamp in 1984 but this was not successful and a halogen lamp was installed three years later.

See also

References

  1. ↑ Rowlett, Russ. "Lighthouses of France: Aquitaine". The Lighthouse Directory. University of North Carolina at Chapel Hill. Retrieved January 24, 2016.
  2. ↑ Rowlett, Russ. "The Tallest Lighthouses". The Lighthouse Directory. University of North Carolina at Chapel Hill.
  3. ↑ "Système d'Eclairage du Phare de Corduan". Retrieved 23 Jul 2015.

This article incorporates text from a publication now in the public domain: Wood, James, ed. (1907). "article name needed". The Nuttall Encyclopædia. London and New York: Frederick Warne.
