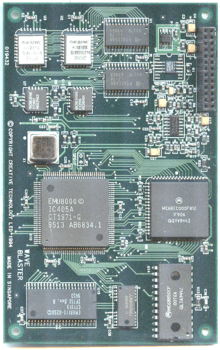

Creative Wave Blaster

Sound Blaster 16 with Wave Blaster header (top left)
Diamond Monster Sound MX300 with a Roland Sound Canvas SCB-55 daughtercard attached.

The Wave Blaster was an add-on MIDI-synthesizer for Creative Sound Blaster 16, Sound Blaster AWE32, and AWE64 family of PC soundcards. It was a sample-based synthesis General MIDI compliant synthesizer. For General MIDI scores, the Wave Blaster's wavetable-engine produced more realistic instrumental music than the SB16's onboard Yamaha-OPL3.

The Wave Blaster attached to a SB16 through a 26-pin expansion-header, eliminating the need for extra cabling between the SB16 and the Wave Blaster. The SB16 emulated an MPU-401 UART, giving existing MIDI-software the option to send MIDI-sequences directly to the attached Wave Blaster, instead of driving an external MIDI-device. The Wave Blaster's analog stereo-output fed into a dedicated line-in on the SB16, where the onboard-mixer allowed equalization, mixing, and volume adjustment.

The Wave Blaster port was adopted by other sound card manufacturers who produced both daughterboards and soundcards with the expansion-header: Diamond, Ensoniq, Guillemot, Oberheim, Orchid, Roland, TerraTec,[1] Turtle Beach,[2] and Yamaha. The header also appeared on devices such as the Korg NX5R MIDI sound module, the Oberheim MC-1000/MC-2000 keyboards, and the TerraTec Axon AX-100 Guitar-to-MIDI converter.

Since 2000, Wave Blaster-capable sound cards for computers are becoming rare. In 2005, Terratec released a new Wave Blaster daughterboard called the Wave XTable with 16mb of on-board sample memory comprising 500 instruments and 10 drum kits. In 2014, a new compatible card called Dreamblaster S1 was produced by the Belgian company Serdaco. In 2015 that same company released a high end card named Dreamblaster X1, comparable to Yamaha and Roland cards.

WaveBlaster II

Creative Labs waveblaster II

Creative released the Waveblaster II (CT1910) shortly after the original Waveblaster. Waveblaster II used a newer E-mu EMU8000 synthesis-engine (which later appeared in the AWE32). Some people believe that, despite using a smaller 2MB instrument ROM (vs 4MB of the original Waveblaster), the Waveblaster II delivered better renditions in most MIDI-scored games, likely due to what they feel is better sample refinement and balancing between instruments.

While the original Waveblaster greatly improved upon the acoustic quality of the SB16's built-in FM-synthesis, the acoustic quality of its instrument-set was poorly regarded. By the time the SB16 reached the height of its popularity, competing MIDI-daughterboards had already pushed aside the Waveblaster. In particular, Roland's Sound Canvas daughterboards (SCD-10/15), priced higher than Creative's offering, were highly regarded for their unrivalled musical reproduction in MIDI-scored game titles. (This was due to Roland's dominance in the production aspect of the MIDI game soundtracks; Roland's daughterboards shared the same synthesis-engine and instrument sound-set as the popular Sound Canvas 55, a commercial MIDI module favored by game composers.) By comparison, the WaveBlaster's instruments were improperly balanced, with many instruments striking at different volume-levels (relative to the de facto standard, Sound Canvas.)

Reception

Computer Gaming World in 1993 praised the Wave Blaster's audio quality and stated that the card was the best wave-table synthesis device for those with a compatible sound card.[3]

WaveBlaster Connector Pinout

PinFunctionPinFunction
1DGnd2-
3DGnd4TTL-MIDI input
5DGnd6+5 Volts
7DGnd8TTL-MIDI output
9DGnd10+5 Volts
11DGnd12Audio R in
13-14+5 Volts
15AGnd16Audio L in
17AGnd18+12 Volts
19AGnd20Audio R out
21AGnd22-12 Volts
23AGnd24Audio L out
25AGnd26!Reset

References

  1. ↑ Walker, Martin. "Terratec Audiosystem EWS64 XXL". Sound On Sound (July 1999).
    Note: they also sold Microwave PC (multiple-wavetable synthesizer module).
  2. ↑ "Turtle Beach HOMAC (Rockwell / Kurzweil) Wavetable Daughterboard, 4MB". AmoRetro.de.
    Note: using Kurzweil sound on Rockwell chip.
  3. ↑ Weksler, Mike; McGee, Joe (October 1993). "CGW Sound Card Survey". Computer Gaming World. pp. 76–83. Retrieved 26 March 2016.
