Hyperbolic coordinates

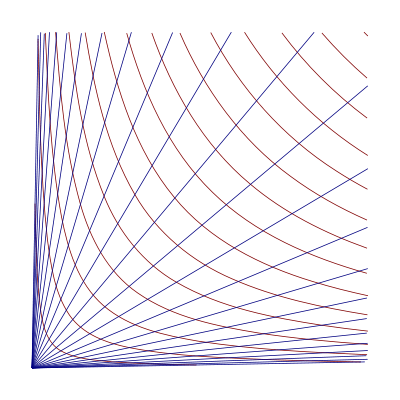

Hyperbolic coordinates plotted on the Euclidean plane: all points on the same blue ray share the same coordinate value u, and all points on the same red hyperbola share the same coordinate value v.

In mathematics, hyperbolic coordinates are a method of locating points in quadrant I of the Cartesian plane

$\{(x,y)\ :\ x>0,\ y>0\ \}=Q\ \!$.

Hyperbolic coordinates take values in the hyperbolic plane defined as:

$HP=\{(u,v):u\in {\mathbb {R}},v>0\}$.

These coordinates in HP are useful for studying logarithmic comparisons of direct proportion in Q and measuring deviations from direct proportion.

For $(x,y)$ in $Q$ take

$u=\ln {\sqrt {{\frac {x}{y}}}}$

and

$v={\sqrt {xy}}$.

Sometimes the parameter $u$ is called the hyperbolic angle and $v$ Is called the geometric mean.

The inverse mapping is

$x=ve^{u},\quad y=ve^{{-u}}$.

This is a continuous mapping, but not an analytic function.

Alternative quadrant metric

Since HP carries the metric space structure of the Poincaré half-plane model of hyperbolic geometry, the bijective correspondence $Q\leftrightarrow HP$ brings this structure to Q. It can be grasped using the notion of hyperbolic motions. Since geodesics in HP are semicircles with centers on the boundary, the geodesics in Q are obtained from the correspondence and turn out to be rays from the origin or petal-shaped curves leaving and re-entering the origin. And the hyperbolic motion of HP given by a left-right shift corresponds to a squeeze mapping applied to Q.

Since hyperbolas in Q correspond to lines parallel to the boundary of HP, they are horocycles in the metric geometry of Q.

If one only considers the Euclidean topology of the plane and the topology inherited by Q, then the lines bounding Q seem close to Q. Insight from the metric space HP shows that the open set Q has only the origin as boundary when viewed through the correspondence. Indeed, consider rays from the origin in Q, and their images, vertical rays from the boundary R of HP. Any point in HP is an infinite distance from the point p at the foot of the perpendicular to R, but a sequence of points on this perpendicular may tend in the direction of p. The corresponding sequence in Q tends along a ray toward the origin. The old Euclidean boundary of Q is no longer relevant.

Applications in physical science

Fundamental physical variables are sometimes related by equations of the form k = x y. For instance, V = I R (Ohm's law), P = V I (electrical power), P V = k T (ideal gas law), and f λ = v (relation of wavelength, frequency, and velocity in the wave medium). When the k is constant, the other variables lie on a hyperbola, which is a horocycle in the appropriate Q quadrant.

For example, in thermodynamics the isothermal process explicitly follows the hyperbolic path and work can be interpreted as a hyperbolic angle change. Similarly, a given mass M of gas with changing volume will have variable density δ = M / V, and the ideal gas law may be written P = k T δ so that an isobaric process traces a hyperbola in the quadrant of absolute temperature and gas density.

For hyperbolic coordinates in the theory of relativity see the History section.

Statistical applications

• Comparative study of population density in the quadrant begins with selecting a reference nation, region, or urban area whose population and area are taken as the point (1,1).
• Analysis of the elected representation of regions in a representative democracy begins with selection of a standard for comparison: a particular represented group, whose magnitude and slate magnitude (of representatives) stands at (1,1) in the quadrant.

Economic applications

There are many natural applications of hyperbolic coordinates in economics:

• Analysis of currency exchange rate fluctuation:

The unit currency sets $x=1$. The price currency corresponds to $y$. For

$0<y<1$

we find $u>0$, a positive hyperbolic angle. For a fluctuation take a new price

$0<z<y$.

Then the change in u is:

$\Delta u=\ln {\sqrt {{\frac {y}{z}}}}$.

Quantifying exchange rate fluctuation through hyperbolic angle provides an objective, symmetric, and consistent measure. The quantity $\Delta u$ is the length of the left-right shift in the hyperbolic motion view of the currency fluctuation.

• Analysis of inflation or deflation of prices of a basket of consumer goods.
• Quantification of change in marketshare in duopoly.
• Corporate stock splits versus stock buy-back.

History

While the geometric mean is an ancient concept, the hyperbolic angle is contemporary with the development of logarithm, the latter part of the seventeenth century. Gregoire de Saint-Vincent, Marin Mersenne, and Alphonse Antonio de Sarasa evaluated the quadrature of the hyperbola as a function having properties now familiar for the logarithm. The exponential function, the hyperbolic sine, and the hyperbolic cosine followed. As complex function theory referred to infinite series the circular functions sine and cosine seemed to absorb the hyperbolic sine and cosine as depending on an imaginary variable. In the nineteenth century biquaternions came into use and exposed the alternative complex plane called split-complex numbers where the hyperbolic angle is raised to a level equal to the classical angle. In English literature biquaternions were used to model spacetime and show its symmetries. There the hyperbolic angle parameter came to be called rapidity. For relativists, examining the quadrant as the possible future between oppositely directed photons, the geometric mean parameter is temporal.

In relativity the focus is on the 3-dimensional hypersurface in the future of spacetime where various velocities arrive after a given proper time. Scott Walter^[1] explains that in November 1907 Hermann Minkowski alluded to a well-known three-dimensional hyperbolic geometry while speaking to the Göttingen Mathematical Society, but not to a four-dimensional one.^[2] In tribute to Wolfgang Rindler, the author of the standard introductory university-level textbook on relativity, hyperbolic coordinates of spacetime are called Rindler coordinates.

References

1. Walter (1999) page 6
2. Walter (1999) page 8

• David Betounes (2001) Differential Equations: Theory and Applications, page 254, Springer-TELOS, ISBN 0-387-95140-7 .
• Scott Walter (1999). "The non-Euclidean style of Minkowskian relativity". Chapter 4 in: Jeremy J. Gray (ed.), The Symbolic Universe: Geometry and Physics 1890-1930, pp. 91–127. Oxford University Press. ISBN 0-19-850088-2.
