Intaglio (printmaking)

For other uses, see Intaglio (disambiguation).

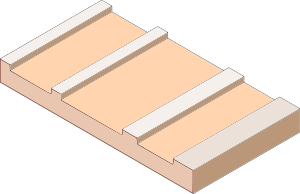

Depressions are cut into a printing plate. The plate shown here is not to scale: the grooves can be fractions of a mm wide.
The plate is covered in ink.
The ink is wiped off the surface of the plate, but remains in the grooves.
Paper is placed on the plate and compressed, such as by a heavy roller.
The paper is removed, and the ink has been transferred from the plate to the paper.
Micro-topography of an ordinary French post stamp (detail) showing the thickness of ink obtained by intaglio. The words "la Poste" appeared in white on red background and hence corresponds to areas with a lack of ink.

Intaglio (/ɪnˈtæli.oʊ/ in-TAL-ee-oh; Italian: [inˈtaʎʎo]) is the family of printing and printmaking techniques in which the image is incised into a surface and the incised line or sunken area holds the ink.[1] It is the direct opposite of a relief print.

Normally, copper or zinc plates are used as a surface or matrix, and the incisions are created by etching, engraving, drypoint, aquatint or mezzotint.[2] Collagraphs may also be printed as intaglio plates.[3]

Process

In intaglio printing, the lines to be printed are cut into a metal plate by means either of a cutting tool called a burin, held in the hand – in which case the process is called engraving; or through the corrosive action of acid – in which case the process is known as etching.[4] In etching, for example, the plate is covered in a resin ground or an acid-resistant wax material. Using an etching needle, or a similar tool, the image is engraved into the ground, revealing the plate underneath. The plate is then dipped into acid. The acid bites into the surface of the plate where it was exposed. Biting is a printmaking term to describe the acid's etching, or incising, of the image.[5] After the plate is sufficiently bitten, the plate is removed from the acid bath, and the ground is removed to prepare for the next step in printing.[6]

To print an intaglio plate, ink is applied to the surface by wiping and/or dabbing the plate to push the ink into the recessed lines, or grooves.[7] The plate is then rubbed with tarlatan cloth to remove most of the excess ink. The final smooth wipe is often done with newspaper or old public phone book pages, leaving ink only in the incisions. A damp piece of paper is placed on top of the plate, so that when going through the press the damp paper will be able to be squeezed into the plate's ink-filled grooves.[7] The paper and plate are then covered by a thick blanket to ensure even pressure when going through the rolling press. The rolling press applies very high pressure through the blanket to push the paper into the grooves on the plate.[8] The blanket is then lifted, revealing the paper and printed image.

Brief history

Main articles: old master print and line engraving

Intaglio printmaking emerged in Europe well after the woodcut print, with the earliest known surviving examples being undated designs for playing cards made in Germany, using drypoint technique, probably in the late 1430s.[9] Engraving had been used by goldsmiths to decorate metalwork, including armor, musical instruments and religious objects since ancient times, and the niello technique, which involved rubbing an alloy into the lines to give a contrasting color, also goes back to late antiquity. Scholars and practitioners of printmaking have suggested that the idea of making prints from engraved plates may well have originated with goldsmiths' practices of taking an impression on paper of a design engraved on an object, in order to keep a record of their work, or to check the quality.[10][11][9]

Martin Schongauer was one of the earliest known artists to exploit the copper-engraving technique, and Albrecht Dürer is one of the most famous intaglio artists. Italian and Netherlandish engraving began slightly after the Germans, but were well developed by 1500. Drypoint and etching were also German inventions of the fifteenth century, probably by the Housebook Master and Daniel Hopfer respectively.

In the nineteenth century, Viennese printer Karl Klic introduced a combined intaglio and photographic process. Photogravure retained the smooth continuous tones of photography but was printed using a chemically-etched copper plate. This permitted a photographic image to be printed on regular paper, for inclusion in books or albums.[12]

Current use

At one time intaglio printing was used for all mass-printed materials including banknotes, stock certificates, newspapers and magazines, fabrics, wallpapers and sheet music. Today intaglio engraving is largely used for paper or plastic currency, banknotes, passports and occasionally for high-value postage stamps. The appearance of engraving is sometimes mimicked for items such as wedding invitations by producing an embossment around lettering printed by another process (such as lithography or offset) to suggest the edges of an engraving plate.

Famous intaglio artists

See also

References

  1. ↑ Strauss, Victor (1967). The printing industry: an introduction to its many branches, processes, and products. Washington: Printing Industries of America. ISBN 0835202720.
  2. ↑ Mustalish, Rachel (2003). "Printmaking Techniques of the WPA Printmakers". In Lisa Mintz Messinger. African American Artists, 1929–1945: Prints, Drawings and Paintings in the Metropolitan of Museum of Art (Metropolitan Museum of Art). Yale University Press. pp. 86–88. ISBN 0300098774.
  3. ↑ Mueller White, Lucy (2002). "Intaglio Processes". Printmaking as Therapy: Frameworks for Freedom. Jessica Kingsley. pp. 108–109. ISBN 1843107082.
  4. ↑ Ellis, Margaret Holben (1987). The Care of Prints and Drawings. Nashville: The American Association for State and Local History, 1987. p. 64.
  5. ↑ "Glossary – Magical-Secrets: A Printmaking Community". magical-secrets.com. Retrieved 5 June 2016.
  6. ↑ "Intaglio Printmaking – artelino". artelino.com. Retrieved 5 June 2016.
  7. 1 2 "Printmaking Techniques – Art Education". masterworksfineart.com. Retrieved 5 June 2016.
  8. ↑ "intaglio – printing". britannica.com. Retrieved 5 June 2016.
  9. 1 2 Harrison, Charles (2006). "The printed picture in the Renaissance." In Kim Woods (Ed.), Making Renaissance Art. New Haven: Yale University Press. p. 219.
  10. ↑ Ross, John (1990). Complete Printmaker. Revised and expanded edition. New York: The Free Press. p. 65.
  11. ↑ Griffiths, Antony (1996). Prints and Printmaking: An introduction to the history and techniques. Berkeley and Los Angeles: University of California Press. p. 39.
  12. ↑ "Photogravure". Notes on Photographs. George Eastman House. Retrieved 24 October 2015.
Look up intaglio in Wiktionary, the free dictionary.
Wikimedia Commons has media related to Intaglio (printmaking).
