Iron Duke-class battleship
 Emperor of India off Jaffa in 1920 | |
| Class overview | |
|---|---|
| Name: | Iron Duke class |
| Operators: |
 Royal Navy |
| Preceded by: | King George V class |
| Succeeded by: | Queen Elizabeth class |
| Planned: | 4 |
| Completed: | 4 |
| Retired: | 4 |
| General characteristics | |
| Type: | Battleship |
| Displacement: | 25,000 tons / 29,500 full load |
| Length: | 622 ft 9 in (189.8 m) |
| Beam: | 90 ft (27.4 m) |
| Draught: | 32 ft 9 in (9.98 m) |
| Propulsion: | 4 shaft Parsons steam turbines, direct drive, 18 Babcock & Wilcox or Yarrow boilers delivering 29,000 hp |
| Speed: | 21.25 knots (39.4 km/h) |
| Range: | 14,000 nm at 10 knots (18.5 km/h) |
| Armament: |
|
| Armour: | |
The Iron Duke class was a group of four dreadnought battleships built for the British Royal Navy before the First World War. The class comprised four ships: Iron Duke, Marlborough, Benbow, and Emperor of India. Launched from October 1912 to November 1913, this was the third class of Royal Navy super-dreadnoughts. The ships were essentially repeats of the King George V-class battleships; they retained the same ten 13.5 inch (34.3 cm) guns in five twin gun turrets on the centreline. However, the Iron Dukes had improved armour and a more powerful secondary armament of 6-inch weapons instead of the 4-inch mounted on the earlier ships.
The four ships were the most advanced battleships in the Royal Navy at the outbreak of the First World War, though they were soon surpassed by the five ships of the Queen Elizabeth class. They all saw extensive service during the war with the Grand Fleet, where Iron Duke acted as the flagship for the fleet commander, Admiral John Jellicoe. Three of the ships, Iron Duke, Benbow, and Marlborough, were present at the Battle of Jutland; the Emperor of India missed the battle by being in dock for periodic refit. The four Iron Duke-class battleships saw limited active duty following the end of the war; they were all demilitarised under the terms of the London Naval Treaty signed in 1930. Iron Duke was reduced to a training and depot ship and lasted in that role until 1946 when she was scrapped. Benbow was scrapped in 1931 and Marlborough followed in 1932. Emperor of India was sunk as a gunnery target in 1931 though was later re-floated to be scrapped in 1932.
Design
General characteristics
The Iron Duke-class ships were 622 feet 9 inches (189.9 metres) long overall, and had a beam of 90 ft (27.4 m) and a draught of 29 ft (8.8 m).[1] This was an increase of 25 ft (7.7 m) in length and 1 ft (.3 m) in width over the preceding King George V-class ships.[2] The Iron Dukes displaced 25,000 long tons (25,400 tonnes).[1] This was some 2,000 tons (2,032 tonnes) heavier than the preceding King George Vs, and was primarily due to the increase in calibre of the secondary battery.[2]
The ships were powered by four-shaft Parsons turbines. Steam was provided to the turbines by 18 Babcock & Wilcox or Yarrow boilers. The engines were rated at 29,000 shaft horsepower and delivered a top speed of 21.5 knots (39.8 km/h; 24.7 mph). Iron Duke and her sisters had a fuel storage capacity of 3,200 long tons (3,300 t) of coal and 1,030 long tons (1,050 t) of oil. This enabled a maximum range of 7,780 nautical miles (14,410 km; 8,950 mi) at a cruising speed of 10 kn (19 km/h; 12 mph).[3]
Armament
Primary battery
The Iron Duke-class ships mounted a main battery of ten 13.5 inch (34.3 cm) Mk V(H) guns [Note 1] in five twin gun turrets, all mounted on the centreline. Two turrets were placed in a superfiring pair forward ("A" and "B" turrets), one turret amidships—the "Q" turret—directly after the two funnels, and two in a superfiring pair aft of the rear superstructure ("X" and "Y" turrets). The gun houses used were Mk II turrets that weighed 600 tons (610 tonnes) and allowed for depression to −5° and elevation to 20°.[4] Despite this, the range dials on the gunsights at the time of construction were graduated to 15 degrees;[5] super-elevating cams and prisms to allow the full elevation of the guns to be used were issued some time after the Battle of Jutland. The forward and aft gun turrets could train 150° in either direction from the centreline, while the "Q" had a much more limited range. It could engage targets on an arc from between 30° to 150° from the centerline on either beam of the ship.[6]
The guns had a rate of fire of between 1.5–2 rounds per minute. The Mk V "Heavy" gun fired a variety of shells, including high explosive and armour-piercing rounds; they all weighed 1,400 lb (635 kg). The guns were loaded with MD45 propellant charges that weighed 297 lb (135 kg); these were stored in silk bags. This provided a muzzle velocity of 2,491 fps (759 meters per second). At maximum elevation of 20°, the guns had a range of 23,740 yards (21,710 m), though at the maximum effective elevation of 15°, the range was somewhat shorter, at approximately 20,000 yd (18,290 m). At a range of 10,000 yd (9,144 m), the gun could penetrate up to 12.5 in (318 mm) of Krupp cemented steel armour, the type used on contemporary German dreadnoughts.[6][Note 2]
Secondary battery
The secondary battery consisted of twelve 6-inch (15.2 cm) Mk VII guns mounted in casemates in the hull around the forward superstructure. These guns were chosen because the 4-inch (10.2 cm) guns on earlier battleships were deemed to be too weak and have too short a range to effectively combat torpedo boats with newer, more powerful torpedoes. Admiral Jackie Fisher had opposed the idea of increasing the secondary battery, though he retired from the post of First Sea Lord in 1910. As a result, the Iron Dukes, which were designed in 1911, received the larger 6 inch gun.[3]
These guns fired 100 lb (45.4 kg) shells at a rate of between 5–7 per minute. The shells were fired with a muzzle velocity of 2,775 fps (846 mps), though the guns were capable of higher velocities. It was reduced in order to standardize the performance of all the 6 inch guns in Royal Navy service, which would simplify range calculations for guns of the calibre. The guns could elevate to 20°, which enabled a maximum range of 15,800 yd (14,450 m).[7]
There were some significant problems with the casemate guns early on, however. They were equipped with hinged plates that were designed to close off the casemate opening in heavy seas. The plates were easily washed away, though, and without them, water easily entered the ship and caused significant flooding. This problem was compounded by the fact that they had been mounted too low in the hull, which subjected them to heavier pounding from rough seas. The problem was eventually corrected by the addition of dwarf bulkheads in the gun houses and rubber seals to the hinged plates.[2]
Other armament
Iron Duke was the first British battleship to be mounted with anti-aircraft weaponry. In 1914, two 3 in (7.62 cm) QF guns were fitted to the aft superstructure, primarily to defend against German airships.[8] The guns fired between 12–14 rounds per minute, and were expected to fire approximately 1,250 shells before replacement or repair was necessary. The shells fired were 12.5 lb (5.67 kg) with a high-explosive warhead. They were manually operated, and had a maximum effective ceiling of 23,500 ft (7,160 m).[9]
As was customary for capital ships of the period, the Iron Duke-class ships were equipped with submerged torpedo tubes. The ships carried four 21 in (53.3 cm) tubes, two on each beam.[3] These launched Mk II torpedoes that carried a 515 lb (234 kg) TNT warhead. They had two speed settings; 31 kn (57 km/h; 36 mph) and 45 kn (83 km/h; 52 mph). At 31 knots, the range was 10,750 yd (9,830 m), though at 45 kn the range was considerably reduced, to 4,500 yd (4,110 m).[10]
Armour
The Iron Duke-class battleships had an armour belt that was 305 mm (12.0 in) thick in the central area of the ship, where the ammunition magazines, machinery spaces, and other vital parts of the ship were located. The belt tapered down to 102 mm (4.0 in) towards the bow and stern. The barbettes that contained the main gun turrets were 254 mm (10.0 in) on the sides and 75 mm (3.0 in) on the rear, where shells were less likely to hit. The turrets themselves were 280 mm (11 in) thick on the sides. The ships' armoured deck was between 25–65 mm (1–2.5 in) thick.[3] After the battle of Jutland in May 1916, some 820 tonnes of armour was added to the ships, primarily to thicken the deck around the main battery turrets, as well as to increase the bulkheads in the ammunition magazines.[8]
Construction
Iron Duke was laid down on 12 January 1912 in the Portsmouth Dockyard. She was launched exactly 10 months later, on 12 October 1912; fitting out work commenced thereafter, and was finished by March 1914. She was then commissioned into the British Home Fleet, as the flagship of Admiral George Callaghan. Marlborough was the second ship of the class to be built. She followed Iron Duke by nearly two weeks; Marlborough was laid down at the Devonport Dockyard on 25 January 1912 and launched on 24 October 1912. Fitting out work proceeded somewhat slower on the ship, which wasn't finished until June 1914.[3]
Benbow was laid down at Beardmore on 30 May 1912, more than 5 months after her older sisters. She was launched on 12 November 1913 and completed by October 1914. Emperor of India, the last of the four battleships, was originally ordered under the name Delhi. She was laid down at Vickers the day after Benbow, on 31 May 1912. She was launched on 27 November 1913, and completed by November 1914.[3]
Ships
| Ship | Builder | Laid down | Launched | Commissioned | Fate |
|---|---|---|---|---|---|
| Iron Duke | HM Dockyard, Portsmouth | 12 January 1912 | 12 October 1912 | 10 March 1914 | Broken up at Glasgow, 1949 |
| Marlborough | HM Dockyard, Devonport | 25 January 1912 | 24 October 1912 | 2 June 1914 | Broken up at Rosyth, 1932 |
| Benbow | William Beardmore, Glasgow | 30 May 1912 | 12 November 1913 | 7 October 1914 | Broken up at Rosyth, 1931 |
| Emperor of India | Vickers, Barrow-in-Furness | 31 May 1912 | 27 November 1913 | 10 November 1914 | Broken up at Rosyth, 1932 |

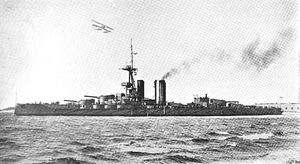

Iron Duke
Upon commissioning, Iron Duke was assigned to the Home Fleet as the fleet flagship. After the outbreak of the First World War, the Royal Navy was reorganized; the Home Fleet and the Atlantic Fleet were combined to form the Grand Fleet; Iron Duke retained her position as fleet flagship, under John Jellicoe. The ship took part in all of the major fleet actions, though only one of them ended in combat—the sortie on 31 May that resulted in the Battle of Jutland.[2] At Jutland, Iron Duke was assigned to the 3rd Division of the 4th Battle Squadron, and was stationed in the centre of the British line.[11]
Following the end of the war, Iron Duke was transferred to the Mediterranean Fleet. During 1919–20, the ship operated in the Black Sea in support of the White Russians during the Russian Civil War. The Washington Naval Treaty of 1922 mandated that Iron Duke be removed from the active roster. However, she remained with the fleet for a short time, having been transferred to the Atlantic Fleet in 1926. This duty assignment lasted 3 years, after which she was removed from active service.[8] She was demilitarised, to be used as a training ship. Two of her gun turrets and a good deal of her armour were removed, and her speed was reduced to 18 kn (33 km/h; 21 mph) through the removal of some of her boilers.[12] She was later used as a depot ship in Scapa Flow, starting in 1939. After the outbreak of the Second World War that year, her remaining guns were removed to be used in shore defences. Luftwaffe bombers attacked her on 17 October 1939; while they scored no direct hits, several near misses caused significant damage. After repairs were effected, the ship resumed her duties as a depot vessel until the end of the war.[8] She was finally sold for scrapping in 1946.[1]
Marlborough
Marlborough was the most heavily engaged ship of the class during the battle of Jutland; she fired a total of 162 heavy-calibre shells, out of a total of 292 for the entire class.[1] She was assigned to the 6th Division of the 1st Battle Squadron, towards the rear of the British line. She served as the flagship of Vice Admiral Cecil Burney.[11] During the battle, she was hit by a torpedo amidships; the torpedo tore a hole that was 21 m by 6 m (70 ft by 20 ft). Despite the damage, she was able to keep her position in the line, though her speed was reduced to 17 kn (31 km/h; 20 mph). Marlborough continued to fire her main guns until the list increased to the point that prevented her guns from being effectively employed. The ship eventually withdrew to the Humber, where she undertook 3 months of repairs.[1]
Post-war, Marlborough joined Iron Duke in the Mediterranean, where she remained until 1926. She was then transferred to the Atlantic Fleet; her tour of duty there lasted until 1929, at which point she was withdrawn from active duty. The ship was sold for scrapping in 1932.[1]
Benbow
Like her sisters, Benbow was assigned to the Grand Fleet for the duration of the First World War. She was assigned to the 4th Battle Squadron on 10 December 1914.[8] Benbow was the flagship of Admiral Doveton Sturdee, the commander of the 4th Division of the 4th Battle Squadron, during the battle of Jutland. The 4th Division was directly ahead of the 3rd Division, where Admiral Jellicoe commanded the fleet from Benbow's sister Iron Duke.[11] Throughout the battle the ship remained undamaged. Like Iron Duke and Marlborough, Benbow was transferred to the Mediterranean in 1919, and she provided artillery support to White Russian forces in the Black Sea. She followed Marlborough to the Atlantic Fleet in 1926; she too was stricken in 1929 and sold for scrap.[8]
Emperor of India
Emperor of India was also assigned to the 4th Battle Squadron, in December 1914. She missed Jutland because she was in dock for a periodic refit. After the end of the war, she was transferred to the Mediterranean along with the other three ships of the class. Emperor of India returned to England in 1922 for a refit, after which she resumed her duties in the Mediterranean. She likewise joined the Atlantic Fleet in 1926, alongside her sisters, and stricken in 1929. Instead of being scrapped, however, she was used as a gunnery target, and sunk in 1931. She was raised shortly thereafter and sold to ship breakers on 6 February 1932.[8]
See also
Notes
- Footnotes
- ↑ The "(H)" denotes that the gun is the variant that fired heavy shells—these were about 1,400 pounds (635 kg) as opposed to 1,250 pound (567 kg) shells fired by the (L) variant. See Navweaps.com
- ↑ The Nassau and Helgoland classes had a 12 in thick armoured belt, though the subsequent Kaiser, König, and Bayern classes had 14 in-thick belts.
- Citations
