JNR Class DD14
Class DD14

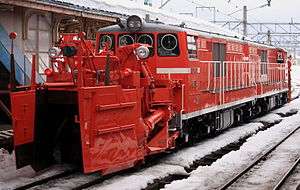

JR East DD14 327 and 332 in action in February 2012 |
Type and origin |
---|
Power type |
Diesel-hydraulic |
---|
Builder |
Kisha Seizo, Kawasaki Heavy Industries |
---|
Build date |
1961-1979 |
---|
Total produced |
43 |
---|
|
|
Performance figures |
---|
Maximum speed |
70 km/h (45 mph) |
---|
|
Career |
---|
Operators |
|
---|
Locale |
Japan |
---|
Last run |
24 February 2015 |
---|
Preserved |
4 |
---|
Disposition |
Withdrawn |
---|
|
The Class DD14 (DD14形) was a Bo-Bo wheel arrangement diesel-hydraulic locomotive type operated in Japan as a self-propelled rotary snowplough unit from 1961 to 2015 by the national railway company Japanese National Railways (JNR), and later by East Japan Railway Company (JR East). West Japan Railway Company (JR West), and Hokkaido Railway Company (JR Hokkaido).
Design
Based on the earlier Class DD13 6th-batch locomotives, the Class DD14 was a single-end-cab design with a rotary snowplough unit at the cab end.[1] It was the first diesel-powered rotary snowplough built by JNR. The locomotives had two 500 hp (370 kW) diesel engines. One engine could be used for propulsion with the other driving the rotary snowplough unit, giving a snow-clearing capacity of approximately 3,000 tonnes per hour, or the unit could be operated in multiple with a second locomotive allowing both engines to drive the rotary snowplough, giving a snow-clearing capacity of approximately 4,000 tonnes per hour.[1]
Snowplough detail of DD14 317, October 2001
A pair of DD14s with their snowplough units detached, March 2008
Variants
- DD14-0: 8 locomotives built between 1961 and 1965 by Kisha Seizo[1]
- DD14-300: 35 locomotives built between 1966 and 1979 by Kisha Seiso and Kawasaki Heavy Industries[1]
History
By 2005, only nine locomotives remained in service, all operated by JR East.[2] The last remaining locomotives in service, DD14 327 and 332, based at JR East's Nagaoka Depot, made their final run on 24 February 2014.[3]
Fleet list
Locomotive number | Manufacturer | Year built | Date withdrawn[4] |
DD14 1 | Kisha Seizo | 1961 | ? |
DD14 2 | Kisha Seizo | 1961 | 30 December 1985 |
DD14 3 | Kisha Seizo | 1961 | 10 September 1996 |
DD14 4 | Kisha Seizo | 1965 | ? |
DD14 5 | Kisha Seizo | 1965 | ? |
DD14 6 | Kisha Seizo | 1965 | 1 December 1994 |
DD14 7 | Kisha Seizo | 1965 | 1 June 1995 |
DD14 8 | Kisha Seizo | 1965 | 5 November 1998 |
DD14 301 | ? | ? | 1 August 1994 |
DD14 302 | ? | ? | 14 February 1990 |
DD14 303 | ? | ? | 24 March 1993 |
DD14 304 | ? | ? | 24 March 1993 |
DD14 305 | ? | ? | 2 April 2009 |
DD14 306 | ? | ? | 25 July 1998 |
DD14 307 | ? | ? | 14 February 1990 |
DD14 308 | ? | ? | 18 June 2009 |
DD14 309 | ? | ? | 16 June 2000 |
DD14 310 | ? | ? | ? |
DD14 311 | ? | ? | 31 March 2000 |
DD14 312 | ? | ? | 30 December 1989 |
DD14 313 | ? | ? | 17 March 1990 |
DD14 314 | ? | ? | 7 April 2003 |
DD14 315 | ? | ? | 25 December 1998 |
DD14 316 | ? | ? | 29 March 1996 |
DD14 317 | ? | ? | 30 May 2008 |
DD14 318 | ? | ? | 17 March 1990 |
DD14 319 | ? | ? | 17 December 1992 |
DD14 320 | ? | ? | 24 March 1993 |
DD14 321 | ? | ? | 24 March 1993 |
DD14 322 | ? | ? | 28 January 1994 |
DD14 323 | ? | ? | 27 September 1993 |
DD14 324 | ? | ? | 13 July 1994 |
DD14 325 | ? | ? | 23 April 2004 |
DD14 326 | ? | ? | 14 June 2002 |
DD14 327 | ? | ? | 2015 |
DD14 328 | ? | ? | 28 September 2009 |
DD14 329 | ? | ? | 29 March 1996 |
DD14 330 | ? | ? | 1 November 1994 |
DD14 331 | ? | ? | 3 July 2003 |
DD14 332 | ? | ? | 2015 |
DD14 333 | ? | ? | 21 June 2008 |
DD14 334 | ? | ? | 21 May 2010 |
DD14 335 | ? | ? | 31 March 2000 |
Preserved examples
As of 2012, three Class DD14 locomotives are preserved in Japan, with one locomotive sold to Taiwan High Speed Rail (THSR) in Taiwan.[5]
DD14 1 at the Mikasa Railway Museum, May 2007
DD14 312 in August 2009
DD14 323 at the Otaru Railway Museum, July 2007
DD14 331 in Taiwan, August 2008
- Class DD15 snowplough propulsion unit
- Class DD16 snowplough propulsion unit
- Class DD18 snowplough propulsion unit
- Class DD19 snowplough propulsion unit
- Class DD53 snowplough propulsion unit
- Class DE15 snowplough propulsion unit
See also
References
|
Wikimedia Commons has media related to JNR DD14. |
- 1 2 3 4 JR全車輛ハンドブック1995 [JR Rolling Stock Handbook 1995] (in Japanese). Japan: Neko Publishing. 1995. p. 62.
- ↑ JR全車輌ハンドブック2005 [JR Rolling Stock Handbook 2005] (in Japanese). Japan: Neko Publishing. August 2005. p. 648. ISBN 4-7770-0382-5.
- ↑ Ito, Hisami (June 2015). さらばDD14 [Farewell DD14]. Japan Railfan Magazine (in Japanese). Japan: Koyusha Co., Ltd. 55 (650): 48–52.
- ↑ JR電車編成表 2013夏 [JR EMU Formations - Summer 2013] (in Japanese). Japan: Kotsu Shimbunsha. May 2013. p. 145. ISBN 978-4-330-37313-3.
- ↑ Sasada, Masahiro (September 2012). 国鉄&JR保存車大全 [JNR & JR Preserved Rolling Stock Complete Guide] (in Japanese). Tokyo, Japan: Ikaros Publications Ltd. p. 127. ISBN 978-4863206175.
