Altay (tank)

Altay MBT

Altay MBT
Type Main battle tank
Place of origin Turkey
Service history
In service Officially declared in 2015.[1] 2018 (date to enter full service).[2]
Used by Turkish Army[3]
Production history
Designer Otokar (main contractor)[3]
Aselsan (sub-systems and fire control system)[4]
MKEK (main gun system)[3]
Roketsan (armour package)[3]
Hyundai Rotem (technical support and assistance)[5]
Designed 2008–2016
Manufacturer 1st Army Maintenance Center Command[3]
Unit cost US$13.75 million[6]
Number built 4 prototypes being tested. A total of 1,000 MBTs are planned to be produced in four separate lots of 250 units[7]
Specifications
Weight 65 tonnes (72 short tons; 64 long tons)[8]
Length 7.3 metres (24 ft) (hull), 10.3 metres (34 ft) (gun forward)[9]
Width 3.9 metres (13 ft)[9]
Height 2.6 metres (8.5 ft)[9]
Crew 4 (commander, gunner, loader, driver)[8]
Armor Roketsan composite armour[3]
Main
armament
 Mkek120 mm 55 caliber smoothbore gun[10]
Secondary
armament
 1 × Aselsan STAMP/II stabilized remote controlled turret[3]
1 × 12.7 mm coaxial heavy machine gun[3]
Engine Multi-fuel[3]
1,500 hp (MTU)[3] or 1,800 hp (local design)[3]
Suspension Hydropneumatic
Operational
range
 500 kilometres (310 mi)[9]
Speed 70 km/h (43 mph) max.[11]
Post-Cold War tanks
Under 120 mm gun
Under 50 tonnes
Over 50 tonnes
Not in service

The Altay is a modern main battle tank, designed and developed by Otokar, a subsidiary of Koç Holding, for the Turkish Army and export markets.[12][13][14] It is named in honor of Army General Fahrettin Altay[15] who commanded the 5th Cavalry Corps in the final stage of the Turkish War of Independence.

History

National Tank Production Project (Turkish: MİTÜP – Milli Tank Üretimi Projesi) was an initiative developed in the mid-1990s to establish independent and robust infrastructure for the production, development and maintenance of main battle tanks used by Turkish Armed Forces.[16][17] The project was initiated with an agreement signed between Otokar and Undersecretariat for Defense Industries of the Republic of Turkey on 30 March 2007, when the Defense Industries Executive Committee awarded a contract worth approximately $500 million to Otokar for the design, development and production of four prototypes of a national main battle tank. This is Turkey's first MBT development program since 1943, when prototypes of a Turkish national tank were produced in Kırıkkale,[18] but never reached full-scale mass production.

Otokar, a company owned by Istanbul-based Koç Holding, is one of the major automotive manufacturers in Turkey. Otokar has produced more than 25,000 military vehicles as of 2008.[19]

Subsequently, in accordance with the later Defense Industries Executive Committee ruling, subcontractors were selected as follows:

Development

Altay is copy version of Hyundai Rotem K-2. Origin from South Korea. In order to improve the current technical capabilities of the Turkish defense industries and increase the amount of domestic contribution towards national defense, the Undersecreteriat for Defense Industries decided that a "National Tank" will serve as an excellent catalyst for uniting certain Turkish defense companies around a common goal and for providing the Turkish military with extra firepower in the form of a modern tank.

The Turkish Ministry of Defense allocated a budget of $1 billion for the development of the Altay.[21]

The military electronics company ASELSAN manufactures and integrates Volkan III modular fire control system, command, control and information systems while state-owned MKEK (Mechanical and Chemical Industries Corporation) agreed for the production and integration of a modified and licensed produced Rheinmetall 120 mm gun. Another state company Roketsan designs an indigenous armor.

Once the prototypes are produced and tested, the Undersecreteriat for Defense Industries of the Republic of Turkey will prepare and execute a separate order for the first lot of 250 tanks. A total of 1000 MBTs are planned to be produced in four separate lots of 250 units. Every delivered lot is expected to have additional upgrades.[22]

First 3D picture of Turkey’s new main battle tank, Altay, was released to public on 7 April 2010 during a press release by SSM. According to reports, a military envoy from Colombia was also present at the press meeting to obtain more information about the tank.[23]

In April 2013, officials of the Saudi Arabian Army reportedly became interested in the Altay main battle tank.[24]

At IDEF-2013, the Azerbaijan Army expressed interest in the Altay tank.[25]

Otokar placed a bid for 77 Altays for a tender in Oman in August 2013.[26]

The first prototype Altay Tank is ready to use by the end of 2016.[27]

In January 2016, Turkey reported that the Altay had received interest from Pakistan and Gulf Arab countries.[28]

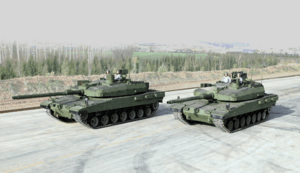

Turkish Altay Tank

Design

The tank is projected to have a 120 millimetres (4.7 in) smoothbore gun and will include CBRN defense elements, to protect it from chemical, biological, radiological and nuclear weapons. The planned maximum speed is set at 70 kilometres per hour (43 mph), provided by an 1,800 hp (1,300 kW) engine (the first two batches will have 1,500 hp (1,100 kW) engines), and the MBTs will be able to function under 4.1 metres (13 ft) of water.

The tank will benefit both from indigenously developed systems and from the cannon technology of the South Korean K2 Black Panther, accorded by an agreement signed with South Korea. The candidates for the engine are German MTU Friedrichshafen and the new South Korean engine which is currently under development. The first two batches will be powered by the 1,500 hp (1,100 kW) MTU engines whereas the last two batches will be powered by an indigenous 1,800 hp engine.[29] On 16 June 2008, SSM and industry members discussed a possible participation for the development of 1,800 hp (1,300 kW) indigenous power pack for use in the armoured personnel carriers and main battle tanks produced in Turkey.

Altay appears to share strong chassis characteristics with its technological base, the South Korean K2 Black Panther, with a re-designed Turkish turret and Aselsan's Volkan-III modular fire control system. The tank will be fielded with a STANAG 4579 compatible battlefield target identification system that ensures interoperability among small tank units. There are seven wheels, which translates to a longer hull, heavier armor and increased survivability.

While moving at high speeds, to evade ATGM attacks, sudden brakings and manevuring at severe angles are the capabilities that were taken into consideration from the early stages of development. Isolated ammunition compartment is designed to save tank crew from explosions alongside fire and explosion suppression systems which will activate in case of hit or accident. The tank is equipped with sensors for the detection of air contamination sourced from chemical and biological weapons.[13]

Electric engine

Otokar General Manager Serdar Görgüç has announced that the company is considering the development of an electric engine for the Altay. Görgüç stated that an electric engine would reduce the ability of the enemy to identify the tank with thermal cameras in the battle field. He added that "Vehicles with internal combustion can be caught on thermal cameras". Otokar developed an electric engine for its buses and is working on retrofitting its design to the Altay tank.[30]

Prototypes

On 29 April 2009, the Subsecretary for Defence Industries of Turkey, Murad Bayar has confirmed at the 9th IDEX International, Defense Industry Fair in Abu Dhabi, that the Turkish tank will be manufactured using only Turkish resources. He added that the research started last week and that he expected to create an authentic tank model specially designed for the needs of the Turkish Armed Forces within 3 years.[20]

As of September 2010, with approval of the tank subsystems and software by Undersecretariat for Defense Industries, Conceptual Design Phase of the Altay project has been completed. Thus, the project advanced to Detailed Design Phase scheduled to last 30.5 months. The scope of the Detailed Design Phase is to design and integrate interfaces for the selected tank subsystems.[31]

On 15 October 2010, Otokar signed a contract with MTU and Renk for the supply of power pack.[31]

On 15 December 2010, Defence Industry Executive Committee decided to start the development of national power pack.[32]

On 10 May 2011, Aselsan was contracted by the Undersecretariat for Defense Industries to design and develop two Battlefield Target Identification Device (BTID) prototypes.[33]

On 11 May 2011, the mock-up of Altay tank was introduced to the public in IDEF2011.[34][35]

On 18 October 2012, the first Altay was put on trials although lacking side skirts and using a mock-up turret to simulate a real turret.[36]

On 16 November 2012, two Altay prototypes successfully passed initial acceptance tests, paving the way for serial production 2 years earlier than expected, two more prototypes will be built by 2013 or 2014.[37][38]

On 7 November 2016, All prototypes have been delivered to the Turkish Land Forces. And Their acceptence tests are expected to finish last quarter of 2016 or early 2017.[39] Also Otokar completed all infrastructure planning and programming for mass production. Koç Holding Vice Chair and Otokar Chair Ali Koç said They are expecting to start mass production 18–22 months after Their offer is accepted.[40]

Sales

The Altay will compete on the Turkish army contract estimated at $3.5B for a batch of 250 tanks. Three more similar batches are expected.[41] Pakistan and Saudi Arabia has shown interest in procuring Altay tank for their armed forces. In late 2016 it was reported that Pakistan plans to acquire Altay tank for its Armed Forces.[42]
