New South Wales Z21 class locomotive

New South Wales Z21 Class

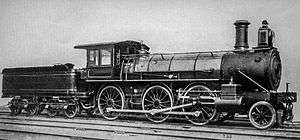

L.304 Class Locomotive
Type and origin
Power type Steam
Builder Baldwin Locomotive Works
Total produced 10[1]
Specifications
Configuration 2-6-0[1]
Gauge 4 ft 8 1⁄2 in (1,435 mm)[1]
Driver dia. 5ft 1in[1]
Boiler pressure 140lb[1]
Cylinder size 18 x 26[1]
Performance figures
Tractive effort 15,467lb[1]
Career
First run March 1885[1]
Preserved None[1]
Scrapped all by 1941[1]

The Z21 class (formerly L.304 class) was a class of steam locomotives built for the New South Wales Government Railways in Australia.[2][3][4]

Wheel arrangement

The wheel arrangement for the Z21 class was 2-6-0. Under the Whyte notation for the classification of steam locomotives, 2-6-0 represents the wheel arrangement of two leading wheels on one axle, usually in a leading truck, six powered and coupled driving wheels on three axles and no trailing wheels. This arrangement is commonly called a Mogul.[5]

History

The last engine was scrapped in 1941.[1]

2-6-0 Wheel arrangement. Front of locomotive to the left.
