Chip Authentication Program

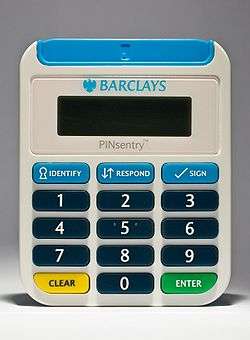

A Gemalto EZIO CAP device with Barclays PINsentry styling

The Chip Authentication Program (CAP) is a MasterCard initiative and technical specification for using EMV banking smartcards for authenticating users and transactions in online and telephone banking. It was also adopted by Visa as Dynamic Passcode Authentication (DPA).[1] The CAP specification defines a handheld device (CAP reader) with a smartcard slot, a numeric keypad, and a display capable of displaying at least 12 characters (e.g., a starburst display). Banking customers who have been issued a CAP reader by their bank can insert their Chip and PIN (EMV) card into the CAP reader in order to participate in one of several supported authentication protocols. CAP is a form of two-factor authentication as both a smartcard and a valid PIN must be present for a transaction to succeed. Banks hope that the system will reduce the risk of unsuspecting customers entering their details into fraudulent websites after reading so-called phishing emails.[2]

Operating principle

The CAP specification supports several authentication methods. The user first inserts their smartcard into the CAP reader and enables it by entering the PIN. A button is then pressed to select the transaction type. Most readers have 2 or 3 transaction types available to the user under a variety of names. Some known implementations are:

Code/identify
Without requiring any further input, the CAP reader interacts with the smartcard to produce a decimal one-time password, which can be used, for example, to log in to a banking website.
Response
This mode implements challenge-response authentication, where the bank's website asks the customer to enter a "challenge" number into the CAP reader, and then copy the "response" number displayed by the CAP reader into the web site.
Sign
This mode is an extension of the previous, where not only a random "challenge" value, but also crucial transaction details such as the transferred value, the currency, and recipient's account number have to be typed into the CAP reader.

The above noted transaction types are implemented using one of two modes. One of these modes has two forms in which it can operate, creating three distinct modes, though they are not named this way in the specification.

Mode1
This is the mode for normal monetary transactions such as an online purchase through a merchant. A transaction value and currency are included in the computation of the cryptogram. If the card does not require it or the terminal does not support it, then both amount and currency are set to zero.
Mode2
This mode may be useful for authenticating a user in which no transaction is taking place, such as logging into an Internet banking system. No transaction value, currency, or other data are included, making these responses very easy to precompute or reuse.
With transaction data signing (TDS)
This mode may be used for more complicated transactions, such as a funds transfer between accounts. Multiple data fields pertaining to the transaction are concatenated and then hashed with a Mode2 cryptogram as the key for the hashing algorithm. The resultant hash is used in place of the cryptogram calculated in a non-TDS Mode2 operation.[3]

Mode1 sounds very much like a specific use of Mode2 with TDS, but there is a critical difference. In Mode1 operation, the transaction data (amount and currency type) are used in the cryptogram calculation in addition to all the values used in Mode2 without TDS, whereas Mode2 includes its transaction data in a successive step rather than including it in the cryptogram calculation step. If it were not for this difference, then all operations could be generalized as a single operation with varying optional transaction data.

Protocol details

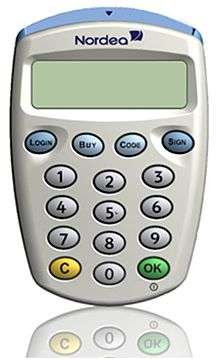

A Nordea E-code reader

In all three modes, the CAP reader asks the EMV card to output a data packet that confirms the cancellation of a fictitious EMV payment transaction, which involves the details entered by the user. This confirmation message contains a message authentication code (typically CBC-MAC/Triple DES) that is generated with the help of a card-specific secret key stored securely in the smartcard. Such cancellation messages pose no security risk to the regular EMV payment application, but can be cryptographically verified and are generated by an EMV card only after the correct PIN has been entered. It provided the CAP designers a way to create strong cryptographic evidence that a PIN-activated EMV card is present and has seen some given input data, without having to add any new software functions to EMV cards already in use.

An EMV smartcard contains a (typically 16-bit) transaction counter that is incremented with each payment or CAP transaction. The response displayed by a CAP reader essentially consists of the various parts of the card's response (Application Transaction Counter, MAC, etc.) which is then reduced to specific bits as determined by the Issuer Authentication Indicator (IAI) record stored in the card (this is set on a per-issuer basis, although should an issuer desire, it could be set randomly for each card providing a database of each card's IAI is kept), finally, after unwanted bits are discarded (essentially the absolute position of bits is irrelevant, a bit in the IAI that is 0 means the corresponding bit in the card response will be dropped rather than merely being set to 0). Finally the value is converted from binary into a decimal number and displayed to the user. A truncated example is provided below:

  1. CAP device selects EMV application, reads IAI info from card and the user selects an action to perform (in this example, IAI will be 1110110110002).
  2. After successful PIN entry, CAP device sends challenge of 0111001110102 as an Authorization Request Cryptogram (ARQC) transaction.
  3. Smartcard gives a response of 1101011101102 and CAP device cancels the fake transaction.
  4. CAP device uses the IAI mask: 1110110110002 to drop bits; those bits that correspond to a 0 in the mask are dropped.
  5. Hence the final response is 11001102 or 102 in decimal.

The real world process is of course somewhat more complex as the card can return the ARQC in one of two formats (either the simple Response Message Template Format type 1 (id. 0x80) or the more complex Response Message Template Format 2 (id. 0x77) which splits the ARQC data into separate TLV values that need to be reassembled sequentially to match that of the type 1 format.

In the identify mode, the response depends only on the required bits from the IAI as the amount and reference number are set to zero; this also means that selecting respond and entering a number of 00000000 will in fact generate a valid identify response. More concerningly however, if a respond request is issued by a bank, using the sign mode with the same number and an amount of ¤0.00 will again generate a valid result which creates a possibility for a fraudster to instruct a customer to do a "test" challenge response for an amount of ¤0.00 which is in fact going to be used by the fraudster to verify a respond command in order for them to add themselves as a payee on the victim's account; these attacks were possible to carry out against banks that used strong authentication devices that were not canceling activities until an amount of at least 0.01 was entered. The likelihood of these kinds of attacks was addressed in 2009 when new generations of devices were rolled out, implementing secure domain separation functionality that is compliant with the MasterCard Application note dated Oct 2010. Similarly of course; a bank that implements the identify command makes it possible for a fraudster to request a victim to do a "test" respond transaction using 00000000 as the reference, and will then be able to successfully login to the victim's account.

The same on-card PIN retry counter is used as in other EMV transactions. So just like at an ATM or POS terminal, entering an incorrect PIN three times in a row into a CAP reader will block the card.

Incompatibility

The original CAP specification was designed to use normal EMV transactions, such that the CAP application could be deployed without updating the firmware of existing EMV cards if necessary. The preferred implementation uses a separate application for CAP transactions. The two applications may share certain data, such as PIN, while other data is not shared in instances where it is only applicable to one application (i.e., terminal risk management data for EMV) or advantages to have separate (i.e., transaction counter, so that EMV and CAP transactions increment separate counters which can be verified more accurately). The reader also carries implementation specific data, some of which may be overridden by values in the card. Therefore, CAP readers are generally not compatible with cards from differing issuing banks.

However, card readers issued by most, possibly all, UK banks conform to a CAP subset defined by APACS, meaning that, in most cases, cards issued by a UK bank can be used in a card reader issued by a different bank.

Vulnerabilities

Cambridge University researchers Saar Drimer, Steven Murdoch, Ross Anderson conducted research[4] into the implementation of CAP, outlining a number of vulnerabilities in the protocol and the UK variant of both readers and cards. Numerous weaknesses were found. Radboud University researchers found a vulnerability in the Dutch ABN AMRO e.dentifier2, allowing an attacker to command a USB connected reader to sign malicious transactions without user approval.[5]

Users

Sweden

United Kingdom

A Nationwide CAP Device with a 20p coin to scale
A Natwest CAP Device with a 10p coin to scale

Software implementations

There exists[9] a software implementation written in Python supporting Mode 1, Mode 2 and Mode 2 with TDS to be used for educational purposes only.
Note that using this software for real financial operations can lead to some risks. Indeed, the advantage of using a standalone reader is to isolate the banking card from malware potentially located on the PC. Using it in a non-secured reader is taking the risk that a keylogger intercepts the PIN, and point of sale malware gains access to the card details, or even intercepts a transaction to modify it or operates its own transaction.
