PKP class OKl27

PKP OKl27

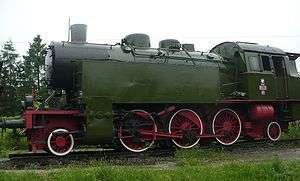

OKl27-41 in Chabówka

Type and origin Power type Steam Builder Cegielski (Poznań) Build date 1928–1933 Total produced 122

Specifications Configuration 2-6-2T UIC class 1′C1′ h2t Gauge 1,435 mm (4 ft 8 ^1⁄2 in) standard gauge Leading dia. 860 mm (33.86 in) Driver dia. 1,500 mm (59.06 in) Trailing dia. 860 mm (33.86 in) Length 12.863 m (42 ft 2 in) Adhesive weight 67.7 t (66.6 long tons; 74.6 short tons) Loco weight 85.1 t (83.8 long tons; 93.8 short tons) Fuel type Coal Fuel capacity 4.0 t (3.9 long tons; 4.4 short tons) Water cap 10,000 l (2,200 imp gal; 2,640 US gal) Firebox:  • Firegrate area 2.6 m^2 (28 sq ft) Boiler pressure 14 kg/cm^2 (1.37 MPa; 199 psi) Heating surface 122.7 m^2 (1,321 sq ft) Superheater: ​  • Heating area 45.2 m^2 (487 sq ft) Cylinders Two, outside Cylinder size 540 mm × 630 mm (21.26 in × 24.80 in)

Performance figures Maximum speed 80 km/h (50 mph) Power output 930 PS (680 kW) Tractive effort 103 kN (23,000 lbf)

Career Operators PKP » DRB » PKP Class PKP: OKl27 DRB: 75^12 Numbers PKP: OKl27-1 to OKl27-122 DRB: 75 1201 to 75 1320

PKP class OKl27 is a class of ordinary passenger (O) tank (K) 2-6-2 (l) steam locomotives designed in 1927 for Polskie Koleje Państwowe (Polish State Railways, PKP). It was the first completely Polish construction. The design was prepared by eng. Bryling.

History

Production

Hipolit Cegielski Metal Works in Poznań produced 122 engines in the period of 1928–1933.^[1]

Operation

The OKl27 class serviced mainly local transport, especially suburban lines.

Wartime

After the German invasion of Poland in World War II, 120 of the 122 OKl27 locomotives were taken into the Deutsche Reichsbahn fleet as 75 1201 to 75 1320.^[2]

Preservation

Four engines have survived: OKl27-10 in Skierniewice (as an exhibit), OKl27-26 in Warsaw Railroad Museum (as an exhibit), OKl27-27 in Gdynia (as an exhibit) and OKl27-41 in Chabówka.
