PUREX is a chemical method used to purify fuel for nuclear reactors or nuclear weapons. It is an acronym standing for Plutonium Uranium Redox EXtraction.[1] PUREX is the de facto standard aqueous nuclear reprocessing method for the recovery of uranium and plutonium from used ("spent", or "depleted") nuclear fuel. It is based on liquid–liquid extraction ion-exchange.

The PUREX process was invented by Herbert H. Anderson and Larned B. Asprey at the Metallurgical Laboratory at the University of Chicago, as part of the Manhattan Project under Glenn T. Seaborg; their patent "Solvent Extraction Process for Plutonium" filed in 1947,[2] mentions tributyl phosphate as the major reactant which accomplishes the bulk of the chemical extraction.[3]

Overview

The spent nuclear fuel to which this process is applied consists primarily of certain very high atomic-weight (actinoid or "actinide") elements (e.g., uranium) along with smaller amounts of material composed of lighter atoms, notably the so-called fission products.

The actinoid elements in this case consist primarily of the largely unconsumed remains of the original fuel (typically U-238 and other isotopes of uranium). In addition there are smaller quantities of other actinoids, created when one isotope is transmuted into another by a reaction involving neutron capture. Plutonium-239 is the leading example. Another term sometimes seen in relation to this secondary material (and other material produced similarly) is activation products.

In response to the PUREX process's ability to extract nuclear weapons materials from the spent fuel, trade in the relevant chemicals is monitored.

In brief, the PUREX process is a liquid-liquid extraction ion-exchange method used to reprocess spent nuclear fuel, in order to extract primarily uranium and plutonium, independent of each other, from the other constituents.

Chemical process

The irradiated fuel is first dissolved in nitric acid at a concentration of ca. 7 M. After the dissolution step it is normal to remove the fine insoluble solids, because otherwise they will disturb the solvent extraction process by altering the liquid-liquid interface. It is known that the presence of a fine solid can stabilize an emulsion. Emulsions are often referred to as third phases in the solvent extraction community.

An organic solvent composed of 30% tributyl phosphate (TBP) in a hydrocarbon solvent, such as kerosene, is used to extract the uranium as UO2(NO3)2·2TBP complexes, and plutonium as similar complexes, from other fission products, which remain in the aqueous phase. The transuranium elements americium and curium also remain in the aqueous phase. The nature of the organic soluble uranium complex has been the subject of some research. A series of complexes of uranium with nitrate and trialkyl phosphates and phosphine oxides have been characterized.[4]

Plutonium is separated from uranium by treating the kerosene solution with aqueous ferrous sulphamate, which selectively reduces the plutonium to the +3 oxidation state. The plutonium passes into the aqueous phase. The uranium is stripped from the kerosene solution by back-extraction into nitric acid at a concentration of ca. 0.2 mol dm−3.[5]

Degradation products of TBP

It is normal to extract both the uranium and plutonium from the majority of the fission products, but it is not possible to get an acceptable separation of the fission products from the actinide products with a single extraction cycle. The unavoidable irradiation (by the material being processed) of the tributyl phosphate / hydrocarbon mixture produces dibutyl hydrogen phosphate. This degradation product is able to act as an extraction agent for many metals, hence leading to the contamination of the product by fission products. Hence it is normal to use more than one extraction cycle. The first cycle lowers the radioactivity of the mixture, allowing the later extraction cycles to be kept cleaner in terms of degradation products.

Extraction of technetium

In addition, the uranium(VI) tributyl phosphate system is able to extract technetium as pertechnetate through an ion pair extraction mechanism. Here is an example of a rhenium version of a uranium / technetium complex which is thought to be responsible for the extraction of technetium into the organic phase. Here are two pictures of actinyl complexes of triphenylphosphine oxide which have been crystallised with perrhenate. With the less highly charged neptunyl ion it is also possible to form a complex.[6]

PUREX raffinate

The term PUREX raffinate describes the mixture of metals in nitric acid which are left behind when the uranium and plutonium have been removed by the PUREX process from a nuclear fuel dissolution liquor. This mixture is often known as high level nuclear waste.

Two PUREX raffinates exist. The most highly active raffinate from the first cycle is the one which is most commonly known as PUREX raffinate. The other is from the medium-active cycle in which the uranium and plutonium are refined by a second extraction with tributyl phosphate.

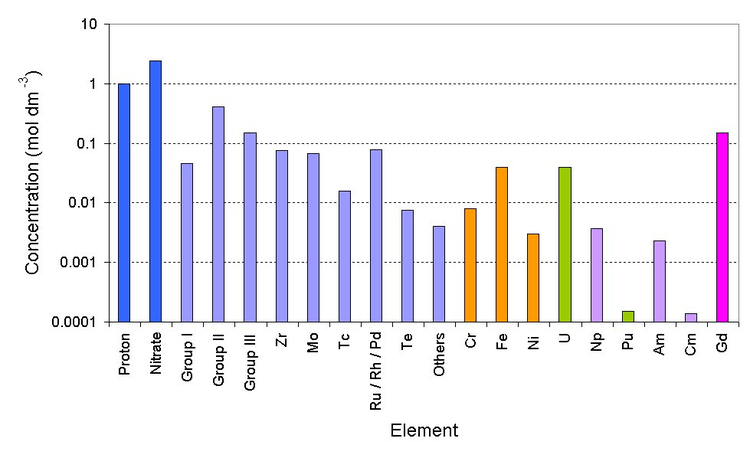

Deep blue is the bulk ions, light blue is the fission products (group I is Rb/Cs) (group II is Sr/Ba) (group III is Y and the lanthanides), orange is the corrosion products (from stainless steel pipework), green are the major actinides, violet are the minor actinides and magenta is the neutron poison)

Currently PUREX raffinate is stored in stainless steel tanks before being converted into glass. The first cycle PUREX raffinate is very radioactive. It has almost all of the fission products, corrosion products such as iron/nickel, traces of uranium, plutonium and the minor actinides.

Pollution

The PUREX Plant at the Hanford Site was responsible for producing 'copious volumes of liquid wastes', resulting in the radioactive contamination of groundwater.[7] A U.S. government report released in 1992 estimated that 685,000 curies (25.3 PBq) of radioactive iodine-131 had been released into the river and air from the Hanford site between 1944 and 1947.

Greenpeace mesurements in La Hague and Sellafield indicated that there are radioactive pollutants steadily released into the sea, and the air. Therefore, people living near these processing plants are exposed to higher radiation levels than the naturally occurring background radiation. This additional radiation is small but not negligible according to Greenpeace.[8]
