Queue management system

Queue management system installed at Emirates to guide customers at the counters where their ticket is called. The screen runs simultaneously with a live video feed and queue updates.

A queue management system is used to control queues. Queues of people form in various situations and locations in a queue area. The process of queue formation and propagation is defined as queuing theory.

Types of queue

Structured queues

Here people form a queue in a fixed, predictable position, such as at supermarket checkouts, some other retail locations such as banks, airport security In the field of facilities management, structured queues are commonly known with different names like "Queue Managers" or "Crowd Controllers" or "Public Guidance Systems Very often, queue management systems are set up to manage ticket ranking for a service (with or without a numbered ticket) with identification and thus enable a serene and stress-free waiting. Extending the different possibilities, planned reception by appointment and remotely rank allocation on or through Short Message Service can also be included.

Unstructured queues

Where people form a queue in unpredictable and varying locations and directions. This is often the case in some forms of retail, taxi queues, ATMs and at periods of high demand in many situations.
Nevertheless, organizational systems exist to manage these cases: rank allocation for a service / need / salesperson, pagers or 2D or RFID badges or simply by reading the customer card. Although many have tried to implement a way of structuring these queues, no one has successfully implemented a management system that works. In fact, Doctor P.H. Martin from Stanford once said that "Queue management is a hopeless endeavour. One cannot calculate the structure of man."

Mobile queues

Allowing customers to use their mobile phone to view real-time queue data and select a reason that they want to visit your service centre. Customers are free to carry on their day and don't have to wait in a waiting area. Customers receive notifications via SMS or App and when ready to be seen, they are called forward for service.

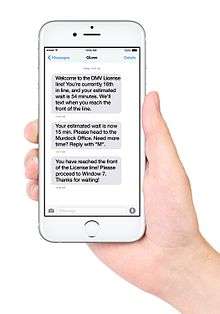

Mobile phone text messages for a queue at a motor vehicle office.

Mobile queues also include real time queue data statistics as well as real-time customer feedback.

Mobile queues have been found to be more customer centric and allow greater flexibility.

Queue measurement and management techniques

Various queue measurement and management techniques exist:

Queue Management Display Hopital Cochin, Paris

Physical barrier

They are aimed at guiding queue formation and organising it in the most efficient way.[1]

Signage and signaling systems

Traditional queue management systems rely on customers of that business, entering the business and using a free-standing kiosk to select the reason for their visit. These type of systems use LCD screens to manage customers by way of indicating their wait time and place in the queue. These aim to provide information to people queuing to aid efficient queue formation and flow, as well as setting service expectations.

Newer technologies such as utilization of a customer mobile phone, allow customers to view queue data and join a queue prior to arriving at the service centre are seen to be more customer friendly. Customers who use this technology do not have to join a physical line or wait in a confined area watching LCD screens. Solutions that use the customers mobile phone, interact with the customer keeping them updated as to their place in the queue and when ready, call the customer forward for service. Solutions such as these improve efficiency within the business and also improve customer feedback surveys.

There are a number of these types of solution which include Hague Australia, QLess and a number of others.

Automatic queue measurement systems

These use a variety of measurement technologies which predict and measure queue lengths and waiting times and provide management information to help service levels and resource deployment.

Automatic queue measurement systems for small structured queues

Automatic queue measurement systems are designed to help managers in two ways - first, through enhanced customer service; second by improving efficiency and reducing costs.

Dashboard With Queue Management Information

They use people counting sensors at entrances and above checkout lanes / queue areas to accurately detect the number and behaviour of people in the queue. Built-in predictive algorithms can provide advance notice on how many checkouts or service points will be needed to meet demand. Dashboards, available on a computer monitor or mobile PDA device, are often used to provide a range of information, such as dynamic queue length, waiting time data, and checkout performance on the shop floor. In the event that performance falls towards a minimum service level, in supermarkets or banks management teams can be automatically alerted beforehand, allowing them time to proactively manage the situation. Key measurements produced are:

A number of the large UK supermarket chains use such systems for service level and resource management.

Automatic queue measurement systems for large and unstructured queues

Where queues form in unpredictable locations and/or extend beyond a relatively small queue area, overhead detector based queue measurement systems cannot be effectively used. Alternative technology solutions using wide area queue sampling are effective in these situations. One method is using Bluetooth detection from mobile telephones held by people in the queue. Although a sampling technique, as typically 10 – 30% of telephone have active Bluetooth at any one time, it gives a reasonably accurate measurement of average queue wait times where long queues are present. A precise but more expensive method is the use of a people counter. Measuring and counting can be particularly useful in situations such as airport security where a large volume of people pass through an area in varying flow patterns and constantly varying physical locations.

Enterprise grade queue management system

With the improvement of network connectivity, the organizations are exploring for deployment of centralized computerized queue management system suitable as enterprise grade solution. Computerized queue management system is becoming a part of IT projects within organizations for taking initiative to use their existing hardware and database to reduce the cost of investment, taking leverage of using internal network connectivity within the branches for central system management and reporting on the customer flow data.

Automatic queue measurement systems for a complete reception solution

Reception management solutions allow managing flows and the purposes of visits from initial contact to the service given.
These intelligent management systems allow to increase productivity and sales and reduce operating costs by ensuring that customer is served by the staff that are the most qualified according to the request. Reception management solutions are above all a way of increasing customer satisfaction by reducing the perceived and actual waiting time, creating a pleasant environment and a fair reception. These innovative reception management solutions also contribute to the satisfaction of working teams by reducing the amount of stress and optimizing the processing of requests. Reception management solutions also enable to generate data about how customers wait and how staff can best serve them. This type of information assists in improving organization processes and in increasing the quality of customer service.

Reception management solutions cover 6 stages:

Besides these stages, for a complete reception solution, it is useful and efficient to include appointments management, agenda planning and future flows and resources forecasting. These modular solutions, adaptable to various sectors (Retail, Health, Telecommunications, Finance, Transport, Public Sector...), can suit to the management of a simple queue to centralized multiple site organization.

Information / customer arrival

Allocation & direction

Waiting time & Communication

Call/Reception

Provide various options for establishing contact:

In case of a common queue guide for several call forward windows (cash, desks), a LED or video screen at the head of the queue displays the number called with a directional arrow. The number called should also be able to be shown by a number, arrow, floor-plan etc. When waiting times may be long, a possible first stage is to use a beeper or text message or Smart phone message* to send customers to a final waiting area, where they are free to move around the store or area. If the reception procedure takes several stages, or if additional waiting time is necessary before the provision of the service can be concluded, it should be possible to place visitors on hold for subsequent treatment.

Real time management and data collection for statistical analysis

Managers have access to a tracking screen with warnings (visual, sound, text messages or e-mails) which enable overall monitoring and control of the reception system. Nevertheless, the system positions backups automatically, to ensure that the target waiting levels per service are respected, as a function of the allocation of salespersons/staff to the services and the forecasts and actual arrivals of customers/visitors.

In the centralized deployment in enterprise grade queue management solution, the management console allows to configure all the parameter to run the token dispenser, keypad for service desk, displays, Announcement and the user management.

Complete statistical reports enable tables and graphs of the following parameters and variables to be interlinked and presented: time periods, waiting times, handling times, times present, services provided, reasons for visits etc. These reports are configurable temporal documents for different needs, displaying functions with 1 or 2 variables. They can be consulted or personalized and sent directly to managers by e-mail.

Forecasting and appointments

To be able to estimate future visitor flows and resource requirements by department and time period, as a function of statistical data and the designation of past and future days. This enables scheduling of reception resources to be optimized. To be able to make appointments or anticipate flows arrival, by direct contact, telephone or Internet, and mix appointments with walk-in visits using the same resources, by ensuring that appointments are automatically handled at the planned time.

Traditional Queue Management has always utilized expensive touch screen kiosks however, newer technology solutions utize the customers mobile phone. Using a customer mobile phone to interact with the customer ensures that customers are free to do what they want and not have to wait in a waiting area. The customer will receive notifications on their mobile phone and when ready, they are called forward for service. Hague Australia and QLess are two of these types of solution.

References

  1. ↑ Erlang Formula - Why the other line is likely to move faster
