Small-lift launch vehicle

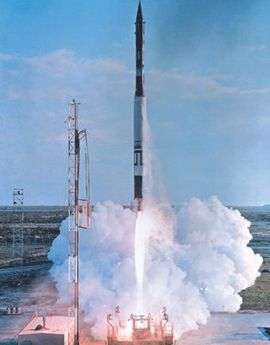

Launch of a Vanguard rocket
Scout rocket launch (NASA)

A small-lift launch vehicle is a rocket orbital launch vehicle that is capable of lifting up to 2,000 kg (4,400 lb) of payload into low Earth orbit (LEO).[1]

The first small-lift launch vehicle was the Sputnik rocket, it put into orbit an unmanned orbital carrier rocket designed by Sergei Korolev in the Soviet Union, derived from the R-7 Semyorka ICBM. On 4 October 1957, the rocket was used to perform the world's first satellite launch, placing Sputnik 1 satellite into a low Earth orbit.[2][3][4] The USA responded by launching the Vanguard rocket,[5][6] that was intended to be the first launch vehicle the United States would use to place a satellite into orbit. Instead, the Sputnik crisis caused by the surprise launch of Sputnik 1 led the U.S., after the failure of Vanguard TV3, to quickly orbit the Explorer 1 satellite using a Juno I rocket launched on January 31, 1958. Vanguard I was the second successful U.S. orbital launch. Thus started the space race, that gave the drive to put men on the moon with the USA's Apollo program.[7][8]

It could be said the space race between United States and the Soviet Union started at the end of World War II, as a race began to retrieve as many V-2 rockets and Nazi Germany V-2 staff as possible.[9] Three hundred rail-car loads of V-2 rocket weapons and parts were captured and shipped to the United States, also 126 of the principal designers of the V-2, including Wernher von Braun and Walter Dornberger, went to America. Von Braun, his brother Magnus von Braun, and seven others decided to surrender to the United States military in Operation Paperclip to ensure they were not captured by the advancing Soviets or shot dead by the Nazis to prevent their capture.[10] Thus the V-2 program started the space race, the V-2 could not orbit, but could reach a height of 88 km (55 mi) on long range trajectory and up to 206 km (128 mi) if launched vertically.[11][12][13]

Small-lift launch vehicles

Vehicle Origin Manufacturer Mass to
LEO
(kg)		 Mass to
other orbits
(kg)		 Launches Status First flight Last flight
Vanguard  United States Martin 9[14] 11(+1) Retired 1957 1959
Lambda 4S  Japan Nissan Motors[15] 26[16] 5 Retired 1966 1970
SLV  India ISRO 40[17] 4 Retired 1979 1983
Safir  Iran Iranian Space Agency 50[18] 4[19][20] Operational 2008 2015[20]
Vector-R  United States Vector Space Systems 60[21] 0 Development
Black Arrow  United Kingdom RAE 73[22] 2 Retired 1969[note 1] 1971
Simorgh  Iran Iranian Space Agency 100-350[23] 0 Development
Naro-1  South Korea
 Russia		 KARI/Khrunichev 100[24] 3 Retired 2009 2013
Unha  North Korea KCST 100[25] 3 Operational 2009
Volna  Russia Makeyev 100[26] 1(+5)[27] Operational 1995[note 2] 2005[27]
Kaituozhe-1  China CALT 100[28] 2 Operational 2002 2003
Diamant  France SEREB 107[29][30] 12 Retired 1965 1975
Electron  New Zealand Rocket Lab 110[31] 0 Development
Vector-H  United States Vector Space Systems 110[32] 0 Development
Shavit  Israel IAE 160[33] 9 Operational 1988 2014
Scout  United States US Air Force/NASA 174[34] 125 Retired 1961 1994
Mu-4S  Japan Nissan Motors[15] 180[16] 4 Retired 1971 1972
Mu-3C  Japan Nissan Motors[15] 195[16] 4 Retired 1974 1979
ARION-1  Spain PLD Space 100[35] 0 Development
ARION-2  Spain PLD Space 150[35] 0 Development
Tronador II  Argentina CONAE 250[36] 0 Development
Shtil'  Russia Makeyev 280 - 420 [37] 2[27] Operational 1998 2006
Mu-3H  Japan Nissan Motors[15] 300[16] 3 Retired 1977 1978
Mu-3S  Japan Nissan Motors[15] 300[16] 4 Retired 1980 1984
Long March 1 (CZ-1)  China CALT 300[38] 2[39] Retired[40] 1970[39] 1971[39]
Delta 1913  United States McDonnell Douglas 328[41] 1[42] Retired 1973 1973
Delta 2310  United States McDonnell Douglas 336[43] 3[42] Retired 1974 1981
Delta 1410  United States McDonnell Douglas 340[44] 1[42] Retired 1975 1975
Intrepid 1  United States Rocket Crafters Inc. 376[45] 0 Development
VLS-1  Brazil AEB, INPE 380[46] 2[note 3] Operational 1997 2003
Delta 1604  United States McDonnell Douglas 390[47] 2[42] Retired 1972 1973
Kuaizhou-1  China CASC 400[48] 2[48] Operational 2013[48] 2014[48]
Kuaizhou-11  China CASC 1,500 Development 2017
Falcon 1  United States SpaceX 420[49] 5 Retired[50] 2006 2009
Pegasus  United States Orbital 443[51] 42[52] Operational 1990 2013[52]
Sputnik 8K71PS  Soviet Union RSC Energia 500[53] 2 Retired 1957 1957
Start-1  Russia MITT 532[54] 350 to SSO[55] 5[56] Operational 1993 2006
Minotaur I  United States Orbital 580[57] 10[58] Operational 2000 2013
Minotaur IV  United States Orbital 1,735[59] 3(+2)[60] Operational 2010[60] 2011[60]
Minotaur-C  United States Orbital 1,450[61] 1,050[61] to SSO 9[62] Operational[63] 1994 2011
Long March 6  China CALT 500 to SSO 1 Operational 2015
Long March 11  China CALT 700[64] 1 Operational 2015[65]
Paektusan  North Korea KCST 700[66] Retired 1998
Long March 1D(CZ-1D)  China CALT 740[67] 0(+3) Retired 1995[note 4] 2002
Mu-3SII  Japan Nissan Motors[15] 770[16] 8 Retired 1985 1995
Athena I  United States Lockheed Martin 795[68] 515 to GTO 4[69] Retired 1995 2001
Delta 3913  United States McDonnell Douglas 816[70] 1[42] Retired 1981 1981
J-I  Japan IHI Corporation
Nissan Motors[15]		 1,000[71] 0(+1) Retired 1996 1996
Delta 1910  United States McDonnell Douglas 1,066[72] 1[42] Retired 1975 1975
N-I  Japan
 United States		 Mitsubishi Heavy Industries 1,200[73] Retired 1975 1982
Atlas-Centaur  United States Lockheed 1,134[74] 2,222 to GTO [75] 148 Retired 1962 1983
Epsilon  Japan IHI Aerospace[76]　　　　　 1,200[16] 1 Operational[16] 2013
Delta 0900  United States McDonnell Douglas 1,300[77] 818 to SSO[42] 2[42] Retired 1972 1972
Sputnik 8A91  Soviet Union RSC Energia 1,327 2 Retired 1958 1958
Ariane 1  Europe Aérospatiale 1,400 1,830 to GTO[78] 11[78] Retired 1979 1986
Kosmos-3M  Soviet Union
 Russia		 NPO Polyot 1,500[79] 442[80] Retired 1967 2010
Strela  Russia Khrunichev 1,400[81] 3[82] Operational[82] 2003 2014
H-I  Japan
 United States		 Mitsubishi Heavy Industries 1,400[83] 9 Retired 1986 1992
M-V  Japan Nissan Motors[15] (-2000)
IHI AEROSPACE[76] (-2006)		 1,800 - 1,850[16] 7 Retired 1997 2006
Athena II  United States Lockheed Martin 1,800[84] 3[85] Retired[86] 1998 1999
Delta 1900  United States McDonnell Douglas 1,800[42] 1[42] Retired 1973 1973
Delta 2910  United States McDonnell Douglas 1,887[42] 6[42] Retired 1975 1978
Rokot  Russia Khrunichev 1,950[87] 1,200 to SSO 25[88][89] Operational 1990
