Somerset Coalfield

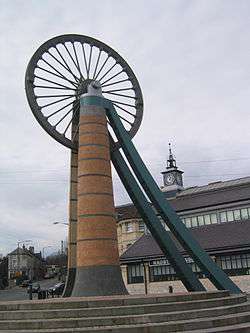

The old coal mining sheave wheel, now featured in the centre of Radstock, in front of the Radstock Museum

Map of the Somerset Coalfields

The Somerset Coalfield in northern Somerset, England is an area where coal was mined from the 15th century until 1973. It is part of a larger coalfield which stretched into southern Gloucestershire. The Somerset coalfield stretched from Cromhall in the north to the Mendip Hills in the south, and from Bath in the east to Nailsea in the west, a total area of about 240 square miles (622 km²).^[1] Most of the pits on the coalfield were concentrated in the Cam Brook, Wellow Brook and Nettlebridge Valleys and around Radstock and Farrington Gurney. The pits were grouped geographically, with clusters of pits close together working the same coal seams often under the same ownership. Many pits shared the trackways and tramways which connected them to the Somerset Coal Canal or railways for distribution.

The early pits were adits where coal outcropped or bell pits where coal was close to the surface. These methods were abandoned when deep seams were mined. The deepest shaft on the coalfield was at the Strap mine at Nettlebridge which reached 1,838 feet (560 m). Flooding and coal dust explosions in some mines required improved ventilation and pumping engines. Several pits closed in the 19th century as the coal was worked out. Those that survived until 1947 became part of the National Coal Board, but the expense of improving equipment and working conditions meant that these became uneconomical and the last pit closed in 1973. There is still evidence of the mine workings, with the remains of buildings, spoil heaps and tramways in the area.

Geology

Structure

The Somerset Coalfield covers a total area of about 240 square miles (622 km²).^[1] It consists of three synclines, informally referred to as 'coal basins'. The Pensford Syncline in the north and the Radstock Syncline in the south are separated by the east-west trending Farmborough Fault Belt.^[2] Further to the west is the smaller Nailsea Syncline.^[2] The Radstock Syncline in particular is cut by a series of east-west thrust faults and north-south trending normal faults.^[2]

Stratigraphy

William Smith.

The Coal Measures are divided into a Lower, Middle and Upper with coal seams found within each of these divisions. Lower and Middle Coal Measures are found at depths between 500 and 5,000 feet (152-1,525 m).^[3] Together the Lower and Middle Coal Measures are 2,000 to 2,500 feet (610–762 m) thick with the Middle Coal Measures averaging about 1,600 feet (488 m) and the Lower Coal Measures about 600 feet (183 m).^[3]

Only in the southern part of the Radstock Syncline have coals of the Lower and Middle Coal Measures been worked, mainly at the Newbury and Vobster collieries in the southeast and in the New Rock and Moorewood pits to the southwest. Only in the eastern part of Pensford Syncline have coals of the Lower and Middle Coal Measures been worked, at the Globe Pit in the Newton St Loe area in the 19th century.^[4] The Variscan orogeny involved lateral compression of the rock sequence resulting in the tight folding, fracturing and faulting of the sandstone and mudstone strata, and the associated Coal Measures. Along the Radstock Slide Fault the distance between the broken ends of a coal seam can be as much as 1,500 feet (457 m).^[5] The complex geology and thin seams gained the field notoriety and three underground explosions, in 1893, 1895 and 1908 were amongst the first attributable solely to airborne coal dust.^[6]

William Smith

Exploratory surveys of the local geology were carried out by William Smith, who became known as the "father of English geology", building on work by John Strachey.^[7][8] Smith worked for the Stracheys who owned Sutton Court, at one of their older mines, the Mearns Pit at High Littleton.^[9] As he observed the rock strata at the pit, he realised that they were arranged in a predictable pattern that the various strata could always be found in the same relative positions and each particular stratum could be identified by the fossils it contained and the same succession of fossil groups from older to younger rocks could be found in other parts of England. Smith noticed an easterly dip in the beds of rock- small near the surface (about three degrees) then greater after the Triassic rocks which led to him a testable hypothesis, which he termed the principle of faunal succession, and he began to determine if the relationships between the strata and their characteristics were consistent throughout the country.^[10] During work as a surveyor (appointed by engineer John Rennie) for the Somerset Coal Canal Company and subsequently, he mapped the locations of rock strata, and their vertical extent, and drew cross-sections and tables of what he saw and earned the name "Strata Smith".^[11]

Coal seams

The following coal seams are recognised within the coalfield. They are listed stratigraphically i.e. uppermost/youngest first. Note that not all seams are continuous across the coalfield and that correlation of some seams from one basin to another is uncertain.^[3][12][13]

Coal measures	Coal seams
Upper Coal Measures within the Pennant Sandstones	Forty Yard Coal (Pensford), Withy Mills Coal, Great Coal, Middle Coal, ?Pensford No 2 Coal, Slyving Coal, Bull Coal, Bottom Little Coal, Rock Coal, Farrington Top Coal, Top Coal, ?Streak Coal, Peacock Coal, Middle Coal, No 5 Coal, ?Bromley No 4 Coal, New Coal, No 7 Coal, No 9 Coal, Big Coal, Brights Coal, No 10 Coal (splitting into Nos 8 & 9 Coals), No 11 Coal, Rudge Coal, Temple Cloud Coal, Newbury No 2 Coal, Newbury No 1 Coal, Globe Coal, Warkey Coal
Middle Coal Measures	Garden Course Coal, Great Course Coal, Firestone Coal, Little Course Coal, Dungy Drift Coal, Coking Coal
Lower Coal Measures	Standing Coal, Main Coal, Perrink Coal, White Axen Coal

History

It is believed that coal was mined in the area during Roman times^[14] and there is documentary evidence of coal being dug on the Mendips in 1305^[15][16] and at Kilmersdon in 1437. By the time of Henry VIII there were coal pits at Clutton, High Littleton and Stratton-on-the-Fosse.

During the early 17th century coal was largely obtained by excavating the outcrops and driving drifts which followed the seam into the ground. Only small amounts of coal could be obtained by these methods and bell pits were also dug.^[17] These were vertical pits, with a 4 feet (1.2 m) diameter shaft up to 60 feet (18.3 m) deep, which were opened out at the bottom. When all the coal that could safely be extracted from the pit had been recovered, another pit was sunk close by to intersect the seam and the waste from the second pit thrown into the first.^[18]

At the beginning of the 19th century there were about 4000 people employed on the coalfield.^[19] The Somerset Miners' Association was founded in 1872, later becoming an area of the National Union of Mineworkers.^[20]

The uses of coal were varied. Coal was used in limekilns to produce lime for mortar used in building and by farmers to improve the soil. From 1820 coal was used to produce gas for lighting and to power steam driven woollen mills in the area. Coke was used to dry malt for the brewing industry.^[21]

Transport

The coalfield had a relatively low population density and did not have a major coal-consuming industry nearby. Transporting coal to market was a key problem for the coalfield's development. In the pre-turnpike era, the roads serving the coalfield were unsuited to moving coal. Bulley notes "The problem ... was rendered far worse by the state of the roads in Somerset, which were notorious down to the middle of the 18th century. Parishes in the area sometimes neglected or refused to repair those roads which were heavily used by coal carts. Thus in 1617 the inhabitants of Stoke St Michael ... complained that "of late by reason of many coalmines ... the highways there are much in decay and grown very founderous".^[22]

In Somerset, turnpike roads began in 1707 with the establishment of the Bath Trust, but turnpikes did not reach the coalfield until the mid-1700s. The Bristol Trust, which passed close to the western boundary of the coalfield, established in 1727 was of little importance, as Bristol was never a significant market, having its own coalfield. Turnpikes facilitated the movement of coal, and John Billingsley^[23] enthused "Nothing so much contributes to the improvement of a county as good roads. Before the establishment of turnpikes, many parts of the county were scarcely accessible. .... coal was carried on horses' backs to the distance of fifteen or twenty miles from the colliery; each horse carried about two hundred and half weight. Now one horse with a light cart will draw four hundred weight or four times more than a horse could carry. Can an insignificant toll be put in competition with this saving?"

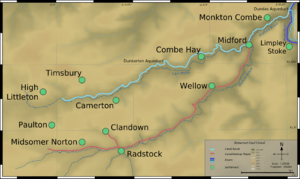

Map of the Somerset Coal Canal

Not all roads were improved, and in 1819 John Skinner observed roads "rendered bad" by the passage of coal wagons.^[24] Expansion of production was limited by access to market. Such a need implied a canal project, following Lord Middleton's dictum "Water transport is what all coal owners must aim at". There were large gains from being connected to a canal system, as stated by the Coal Commission: "At about this period (1800) the system of coal navigation was being rapidly extended, and the result was that coals were gradually finding their way into districts that could not be reached unless at great cost, by road".^[25]

A scheme for an extension of the Avon Navigation was proposed in 1766, but canals did not reach the coalfield for almost another 50 years.^[26] In 1794 coal proprietors formed a committee to construct the Somerset Coal Canal^[27] with two branches into the Cam Brook and Wellow Brook Valleys, and from a junction at Midford, to join the proposed Kennet and Avon Canal at the Dundas Aqueduct near Bath. Coal was transported by the Somerset Coal Canal and later by the Bristol and North Somerset Railway and Somerset and Dorset Joint Railway, which were accessed from the pits by a series of tramways.^[27] After 1854, when the first railway line was opened, the tonnage carried by the coal canal declined rapidly.

Decline and closure

The total tonnage of coal produced by the coalfield increased throughout the 19th century, reaching a peak around 1901, when there were 79 separate collieries and production was 1,250,000 tons per annum.^[28][29] The peak years for production were 1900 to 1920. However decline took hold and the number of pits reduced from 30 at the beginning of the 20th century to 14 by the mid-1930s, 12 at nationalisation when the National Coal Board was created on 1 January 1947, under the Coal Industry Nationalisation Act 1946, 5 in 1959 and none after 1973.^[30] Despite some investment in new infrastructure, particularly at Norton Hill,^[29] thin seams made production expensive, limiting profit and investment. The conversion of Portishead power station from coal to oil and reduced national demand together with competition from more economical coalfields^[31] led to the closure of the last two pits, Kilmersdon and Writhlington, in September 1973.^[1][29]

Area today

Although there are still the remains of mines, disused or redeveloped buildings and a few spoil tips, most have been removed or landscaped,^[32][33] the area has returned to a largely rural nature between the Mendip Hills and the River Avon in north east Somerset. The towns and villages have some light industry but are often commuter towns for Bath and Bristol. There are several limestone quarries particularly in the Mendips.^[34]

The Colliers Way (NCR24) national cycle route passes landmarks associated with the coalfield,^[35] and other roads and footpaths follow tramways developed during the coal mining years.^[36] The cycleway runs from Dundas Aqueduct to Frome via Radstock,^[37] and is intended to provide part of a continuous cycle route to Southampton and Portsmouth.

Radstock Museum has exhibits which offer an insight into life in north Somerset since the 19th century. Exhibits relate to the coalfield and its geology. Artefacts and memorabilia from the Somerset Coal Canal, Somerset and Dorset and Great Western Railways are also on display.^[38]

Pensford coal basin

The Pensford Colliery winding house after conversion.

The Pensford coal basin is in the northern part of the coalfield around Bishop Sutton, Pensford, Stanton Drew, Farmborough and Hunstrete. At least one pit was operating near Bishop Sutton before 1719.^[39] Four bell pits in Bishop Sutton were marked on field tithe No 1409, and four shaft pits on field tithe No 1428, but were no longer working by 1824.^[40]

The Old Pit at Bishop Sutton, which was also known as Sutton Top Pit or Upper Sutton Pit was dug before 1799 and owned by Lieutenant Henry Fisher, who sold it in 1821 to Robert Blinman Dowling. After Dowling's death in 1852 the Old Pit was sold to Mr T.T. Hawkes,^[41] but he defaulted on the payments and it was sold in 1853 to William Rees-Mogg (ancestor of William Rees-Mogg) and his associates. The shaft reached a depth of 304 feet (93 m),^[42] but the pit went out of production by 1855,^[43] when "New Pit", which had been sunk in the early 19th century but then closed, was reopened and deepened to exploit deeper seams. New Pit had two shafts of 4 feet (1.2 m) diameter, one for winding and one for pumping. In 1896 it was owned by F. Spencer of New Rock Colliery,^[44] and in 1908 by Jesse Lovell and Sons.^[45] By 1921 the pit employed 150 men and boys and produced 10,000 tins per annum.^[46] The pit finally closed in 1929.^[47][48]

Pensford Colliery, which opened in 1909, had the latest equipment at the time including coal cutters. It had a red brick winding house, pithead baths and a coal washery. Faulting made coal production expensive and it closed in 1958.^[29]

Pits of the Pensford coal basin

Colliery	Location	Coordinates	Opened	Closed	Shaft diameter (ft in (m))	Max shaft depth (ft (m))	Notes
Bishop Sutton (old)	Bishop Sutton	51°20′07″N 2°35′37″W / 51.3353°N 2.5935°W	c1811	1855	?	304 (92.7)[49]	Bought by William Rees-Mogg in 1835
Bishop Sutton (new)	Bishop Sutton	51°20′07″N 2°35′37″W / 51.3353°N 2.5935°W	1855	1929[48]	9 0 (2.7)[49]	877 (267.3)[49]	1896 owned by F. Spencer, New Rock Colliery,[44] 1908 owned by J Lovell and Sons[45]
Bromley	Pensford	51°22′17″N 2°32′53″W / 51.3715°N 2.5480°W	1860[50]	1957[51]	4 6 (1.4)[52]	475 (144.8)[52]	1896[44] & 1908 Owned by Bromley Coal Co Ltd.[45]
Common Wood Level	Hunstrete	51°21′36″N 2°30′28″W / 51.3600°N 2.5077°W	1829	1832	?	?	No coal mined. Attempts made again in 1969 but unsuccessful
Farmborough	Farmborough	51°20′35″N 2°29′04″W / 51.3430°N 2.4845°W	c1841	1847	?	1413 (430.7)[49]	No coal mined
Pensford	Pensford	51°21′45″N 2°32′52″W / 51.3625°N 2.5479°W	1909[53]	1955[54]	14 0 (4.3)[49]	1494 (445.4)[49]
Rydon's (or Riding's)	Stanton Drew	51°22′01″N 2°34′47″W / 51.3669°N 2.5796°W	1808	1833	?	312 (95)[49]

Earl of Warwick's Clutton Collieries

The Earl of Warwick's estates included sawmills, quarries, brickworks and collieries in addition to agricultural holdings. Bell pits, around Clutton and High Littleton, were described in a survey of 1610. All were closed by 1836.^[55] The first deep mine in the parish of High Littleton was Mearns Coalworks which began in 1783.^[56] The Greyfield Coal Company did not start until 1833 and expanded after the opening of the Bristol and North Somerset Railway in 1847.^[57] Greyfield Colliery closed in 1911,^[58] and the railway in 1964.^[59] Maynard Terrace in Clutton was built to house some of the miners.

Pits of the Earl of Warwick's Clutton Collieries

Colliery	Location	Coordinates	Opened	Closed	Shaft diameter (ft in (m))	Max shaft depth (ft (m))	Notes
Burchells (sometimes spelt Burchills or Birchill's)[60]	Clutton	51°19′55″N 2°32′20″W / 51.3320°N 2.5389°W	1911 (reopened)[60]	1921[60]	?	148 (45.1)[61]
Fry's Bottom	Clutton	51°20′28″N 2°32′15″W / 51.3410°N 2.5376°W	1830s[60]	1885[48]	9 0 (2.7)[61]	588 (179.2)[61]
Greyfield	Clutton	51°19′30″N 2°30′57″W / 51.3249°N 2.5159°W	1833	1911[48][60]	10 0 (3)[61]	900 (274.3)[61]	1908[45] Owned by Greyfield Colliery Co. Ltd.,
Mooresland	Clutton	51°19′30″N 2°30′57″W / 51.3249°N 2.5159°W	1840s	?	?	?	Output transferred to nearby Greyfield

Paulton Basin

The spoil tip in Paulton, referred to locally as "The Batch".

Collieries in the Paulton basin were connected to the terminal basin of the northern branch of the Somerset Coal Canal which was the focus for tramroads that connected at least 15 collieries around Paulton, Timsbury and High Littleton. On the northern side of canal was the terminus for the tramroad which served Old Grove, Prior's, Tyning and Hayeswood pits, with a branch line to Amesbury and Mearns pits.^[62] Parts of this line were still in use in 1873, probably carrying horse-drawn wagons of coal. The southern side of the canal basin was connected to the pits at Brittens, Littlebrook, Paulton Ham, Paulton Hill, Simons Hill by a tramway which terminated at Salisbury Colliery. In addition the Paulton Foundry used this line. The entire line was disused by 1871 as were the collieries it served.^[62]

The area has been designated as an ‘area of special architectural or historic interest, the character or appearance of which it is desirable to preserve or enhance’ under section 69 of the Planning (Listed Buildings and Conservation Areas) Act 1990.^[63]

Pits of the Paulton Basin

Colliery	Location	Coordinates	Opened	Closed	Shaft diameter (ft in (m))[64]	Max shaft depth (ft (m))[64]	Notes
Amesbury	High Littleton	51°19′40″N 2°29′40″W / 51.3277°N 2.4944°W	before 1701	early 19th century	?	200 (61)
Brewers	Paulton	51°18′28″N 2°30′10″W / 51.3079°N 2.5028°W	before 1700	?	?	102 (31)
Brittens Lower	Paulton	51°18′22″N 2°29′34″W / 51.3061°N 2.4927°W	?	by 1864	?	?
Brittens New	Paulton	51°18′22″N 2°29′34″W / 51.3061°N 2.4927°W	?	by 1864	?	?
Brombel (or Brombells, possibly Allens Paddock)	Paulton	51°18′28″N 2°30′10″W / 51.3079°N 2.5028°W	before 1793	?	4 6 (1.4)	?
Crossways	Paulton	51°18′28″N 2°30′10″W / 51.3079°N 2.5028°W	?	?	5 (1.5)	144 (43.9)
Goosard (or Gooseward or Goosewardsham or Paulton Lower Engine)	Paulton	51°18′58″N 2°29′45″W / 51.3160°N 2.4957°W	1708	?	?	?
Hayeswood	Timsbury	51°19′53″N 2°29′35″W / 51.331306°N 2.492985°W	1750	1862	6 0 (1.8)	642 (195.7)
Heighgrove (or Woody Heighgrove)	Paulton	51°18′28″N 2°30′10″W / 51.3079°N 2.5028°W	1753	1819	?	?
Littlebrook	Paulton	51°18′15″N 2°30′05″W / 51.3043°N 2.5013°W	?	c1850s	5 0 (1.5)	215 (65.5)
Mearns	High Littleton	51°19′40″N 2°30′00″W / 51.3277°N 2.5001°W	1783	1824	4 6 (1.4)	279 (85)
New Grove (possibly also Priors)	Paulton	51°18′28″N 2°30′10″W / 51.3079°N 2.5028°W	1792	?	?	?
Tyning	Timsbury	51°19′36″N 2°29′24″W / 51.3268°N 2.4901°W	1766	?	?	?	Old & New Pits
Old Grove	Paulton	51°19′11″N 2°29′13″W / 51.3196°N 2.487°W	?	?	4 6 (1.4)	4185 (1373)
Paulton Bottom	Paulton	51°18′28″N 2°30′10″W / 51.3079°N 2.5028°W	?	?	4 6 (1.4)	60 (18.3)
Paulton Engine	Paulton	51°18′28″N 2°30′10″W / 51.3079°N 2.5028°W	before 1750	?	9 0 (2.75)	609 (185.6)	Next to Paulton Brass and Iron foundry
Paulton Ham	Paulton	51°18′28″N 2°30′10″W / 51.3079°N 2.5028°W	c1830s	1964	6 0 (1.83)	552 (168.2)
Paulton Hill	Paulton	51°18′28″N 2°30′10″W / 51.3079°N 2.5028°W	1840	1864	?	798 (243.2)
Radford	Paulton	51°19′04″N 2°28′12″W / 51.3179°N 2.4699°W	c1800	1847	6 (1.8)	1152 (351.1)
Salisbury	Paulton	51°17′59″N 2°29′28″W / 51.2998°N 2.4912°W	1792	1873	6 (1.8)	150 (45.7)
Simons Hill (also known as Simmons Hill)	Paulton	51°18′28″N 2°30′10″W / 51.3079°N 2.5028°W	1811	1844	4 6 (1.4)	672 (204.8)
Withy Mills	Paulton	51°19′04″N 2°29′14″W / 51.3178°N 2.4871°W	?1804	1877	4 6 (1.4)	804 (245)

Timsbury and Camerton

The first of the collieries around Timsbury village was sunk in 1791 and known as Conygre (Conigre in old spellings). Camerton Old Pit opened in 1781^[65] and the shaft went down to 921 feet (281 m). It closed around circa 1898 but the shaft was then used as an airway and escape route for the New Pit, until 1930 when it was closed and capped. The New Pit was half a mile east of the Old Pit and went down to 1,818 feet (554 m). In 1928 it was joined underground to Braysdown Colliery and eventually closed in 1950.^[66]

There is very little obvious landscape evidence remaining of the previous mining activities around Clutton, Temple Cloud, High Littleton and Timsbury. However there is a very large Batch almost in the middle of Camerton that is now a designated Local Nature Reserve. The Batch was bare, like the Paulton ones until, according to locals, the wife of the owner of Camerton Court decided to pay for it to be planted with trees to improve the view. There are small batches at Clutton, east of Radford Hill and at Greyfields, High Littleton.^[67]

Pits of the Timsbury and Camerton Collieries

Colliery	Location	Coordinates	Opened	Closed	Shaft diameter (ft in (m))[68]	Max shaft depth (ft (m))[68]	Notes
Camerton New	Camerton	51°19′11″N 2°26′54″W / 51.3198°N 2.4484°W	1800	1950[69]	8 0 (2.4)	1818 (554.1) (a lesser depth) before 1800	Site of a massive coal dust explosion at Camerton New in 1893 which killed two miners.[70]
Camerton Old	Camerton	51°19′15″N 2°27′36″W / 51.3207°N 2.4599°W	1781	1898	7 0 (2.1)	921 (280.7)[66]	1896[44] & 1908[45] owned by Miss E.E. Jarrett.
Lower Congyre	Timsbury	51°19′24″N 2°28′02″W / 51.3233°N 2.4671°W	1847	1916	8 0 (2.4)	1128 (343.8)	Merger of Upper and Lower pits. 1896[44] owned by Samborne Smith and Company. 1908[45] Owned by Beaumont, Kennedy and Co
Radford	Timsbury	51°19′14″N 2°29′09″W / 51.3205°N 2.4857°W	?	?	6 0 (1.8)	1152 (351.1)	1906[45] Owned by Earl of Waldegrave
Upper Congyre	Timsbury	51°19′43″N 2°28′48″W / 51.3287°N 2.4800°W	1791	1916	8 0 (2.4)	1038 (316.4)	Merger of Upper and Lower pits. 1896[44] owned by Samborne Smith and Company. 1908[45] Owned by Beaumont, Kennedy and Co. On 6 February 1895 the pit was the site of an explosion which killed seven men.[71]

East of Camerton

East of Camerton the coal is buried beneath newer rock strata, which meant that mining in the area was more difficult.^[6]

The dominant features of the valleys of the Cam and Wellow Brooks are remnants of coal mining from the 18th-20th centuries. In both valleys there are frequent shafts and batches together with the remains of the railway and tram lines that connected the mines to the Avon Valley. Remains of the Somersetshire Coal Canal are also significant reminders of this coal mining history in this area.^[72]

Pits to the east of Camerton

Colliery	Location	Coordinates	Opened	Closed	Shaft diameter (ft in (m))[73]	Max shaft depth (ft (m))[73]	Notes
Bengrove (also called Priston Old and Dunkerton)	between Camerton and Tunley	51°19′27″N 2°26′44″W / 51.3243°N 2.4455°W	1764	c1774	?	506 (154.2)
Dunkerton	Dunkerton	51°20′00″N 2°24′30″W / 51.3334°N 2.4083°W	1904	1925,[74] 1933[48]	10 (3)	1651 (503.2)	Poor working conditions led to riots in 1908-9
Hills (also known as Priston or Dunkerton New)	Tunley	51°19′53″N 2°27′05″W / 51.3315°N 2.4514°W	1792	1824	?	?
Priston (also known as Tunley)	Tunley	51°20′36″N 2°26′29″W / 51.3432°N 2.4414°W	1914	1930[48]	8 (2.4)	750 (228.6)	Last deep mine to be opened in Somerset.

Farrington Gurney

Memorial to miners who lost their lives in a pit disaster in 1839

Mining around Farrington Gurney has been undertaken since the 17th century^[75] where, by 1780 the pits were known as Farrington Colliery.

The main geological feature south of Hallatrow consists of Supra-Pennant Measures which include the upper coal measures and outcrops of sandstone. Relics of its industrial past are evident in the area, including the highly visible and distinct conical shaped Old Mills Batch with its generally unvegetated surface. The three disused colliery sites have been developed for light industry, a depot and a superstore.^[76]

Pits of Farrington Gurney

Colliery	Location	Coordinates	Opened	Closed	Shaft diameter (ft in (m))[77]	Max shaft depth (ft (m))[77]	Notes
Church Field (also known as Farrington of Ruett Slant)	Farrington Gurney	51°18′05″N 2°31′22″W / 51.3015°N 2.5228°W	1921	1923	?	?	Drift Mine transferred to Marsh Lane
Farrington	Farrington Gurney	51°18′05″N 2°31′22″W / 51.3015°N 2.5228°W	1782	1923[48]	9 (2.7)	588 (179.2)
Marsh Lane	Farrington Gurney	51°17′39″N 2°31′22″W / 51.2943°N 2.5227°W	1921[78]	1949[78]	?	?	visited by the Prince of Wales on 7 July 1934
Old Mills	Midsomer Norton	51°17′33″N 2°30′14″W / 51.2926°N 2.5040°W	1860[79]	1966[79]	11 (3.4)	1098 (334.7)	Merged with Springfield
Springfield	Midsomer Norton	51°17′33″N 2°30′14″W / 51.2926°N 2.5040°W	1872	1966	9 6 (2.9)	965 (294.1)	Merged with Old Mills. Owned by W Evans and Co.[45]

Duchy Mines

The Duchy of Cornwall owned most of the mineral rights around Midsomer Norton and various small pits opened around 1750 to exploit these.

Pits of the Duchy Mines

Colliery	Location	Coordinates	Opened	Closed	Shaft diameter (ft in (m))[80]	Max shaft depth (ft (m))[80]	Notes
Clandown	Clandown	51°18′10″N 2°27′24″W / 51.3027°N 2.4568°W	1811	1929	6 (1.8)	1437 (438)	1896 owned by Trustees of the late C. Hollwey[44] 1908 Owned by Clandown Colliery Co
Old Welton	Midsomer Norton	51°16′52″N 2°27′39″W / 51.2811°N 2.4609°W	1783	1896	4 6 (1.4)	1646 (501.7)	Merged with Clandown. 1896[44] owned by Old Welton Colliery Co. 1908 Owned by Clandown Colliery Co
Welton Hill	Midsomer Norton	51°17′50″N 2°28′36″W / 51.2972°N 2.4768°W	1813	1896	6 (1.8)	605 (184.4)

Earl Waldegrave's Radstock Collieries

Old pit head buildings now an engineering works

In 1763 coal was discovered in Radstock and mining began^[81] on land owned by the Waldegrave family, Lords of the Manor since the English Civil War. In 1896 the pits were owned by the Trustee of Frances, late Countess of Waldegrave.^[44]

Radstock was the terminus for the southern branch of the Somerset Coal Canal which was subsequently turned into a tramway and became the centre for railway development and coal depots, coal washeries, workshops and a gas works. As part of the development of the Wiltshire, Somerset and Weymouth Railway, an 8-mile (13 km) line from Radstock to Frome was built to carry coal. In the 1870s the broad-gauge line was converted to standard gauge and connected to the Bristol and North Somerset Line connecting it to the Great Western Railway. The Radstock railway site comprises approximately 8.8 hectares of land which has been subject to planning and development applications.^[82]

Pits of Earl Waldegrave's Radstock Collieries

Colliery	Location	Coordinates	Opened	Closed	Shaft diameter (ft in (m))[83]	Max shaft depth (ft (m))[83]	Notes
Ludlows	Radstock	51°17′09″N 2°26′22″W / 51.2857°N 2.4394°W	before 1790[84]	1954[84]	8[84]	1686
Middle Pit	Radstock	51°17′41″N 2°27′04″W / 51.2946°N 2.4510°W	before 1801	1933	10 (3)	1791 (545.9)
Old Pit	Radstock	51°17′41″N 2°27′04″W / 51.2946°N 2.4510°W	before 1800	1858	6 (1.8)	942 (287.1)
Smallcombe	Radstock	51°17′47″N 2°27′09″W / 51.2964°N 2.4525°W	1797	1854	7 (2.1)	1074 (327.4)
Tyning	Radstock	51°17′34″N 2°25′56″W / 51.2929°N 2.4323°W	1837	1909	8 (2.4)	1007 (306.9)
Wellsway	Westfield	51°16′06″N 2°29′32″W / 51.2684°N 2.4923°W	1829	1920	4 6 (1.4)	754 (229.8)

Writhlington Collieries

The Writhlington batch with miners' houses in the foreground

The Writhlington Collieries, close to the Waldegrave Collieries, were further east of Radstock and under different ownership. In 1896^[44] they were owned by the Writhlington, Huish and Foxcote Colliery Co., and in 1908^[45] by the Writhlington Collieries Co. Ltd. The Upper and Lower Writhlington, Huish & Foxcote pits were merged into a single colliery.^[85]

The base of the Kilmersdon valley consists of alluvium deposits. Above these, on both sides of all of the valleys, is a band of shales and clays from the Penarth group from the Triassic period. Most of the upland in this area is Lias Limestone (white and blue) while the highest part, above 130 m, south of Haydon, is an outcrop of Inferior Oolitic Limestone, both are from the Jurassic period. The steepest slopes of both the Kilmersdon and Snail’s Bottom valleys have frequently slipped. Below these rocks are the coal bearing Carboniferous strata. Haydon is an outlying settlement of Radstock built to house miners from the local pit. The disused railway line and inclined railway at Haydon are important elements in the Kilmersdon valley east of Haydon. The modern landscape has a less maintained and ‘rougher’ character and texture than neighbouring agricultural areas caused mainly by the remnants of the coal industry and its infrastructure and changes in agricultural management. Disturbance caused by coal mining and the railways and the subsequent end of mining and abandonment of the railways has created valuable habitats for nature conservation.^[86]

The Writhlington spoil heap or "batch" is a Site of Special Scientific Interest (SSSI) because of the rich collection of fossils in the spoil.^[87] The Braysdown batch was planted with conifers, and is known as Braysdown Hill. The offices, blacksmith's shop and stables at the Upper Writhlington Colliery were converted into dwellings.^[88]

Pits of the Writhlington Collieries

Colliery	Location	Coordinates	Opened	Closed	Shaft diameter (ft in (m))[89]	Max shaft depth (ft (m))[89]	Notes
Braysdown	Peasedown St John	51°18′39″N 2°25′31″W / 51.3109°N 2.4253°W	1845[90]	1959	10 (3)[91]	1834 (559)	1896 owned by Danbeny and Scobel[44] 1908 Owned by Braysdown Colliery Co.[45] At nationalisation in 1947 it was producing 37,250 tons.[91]
Foxcote	Foxcote	51°17′57″N 2°24′29″W / 51.2993°N 2.4080°W	1853	1931	9 (2.7)	1416 (431.6)	1896[44] owned by Writhlington, Huish and Foxcote Colliery Co.,
Huish	Kilmersdon	51°16′04″N 2°25′20″W / 51.2677°N 2.4221°W	1822	1912	8 (2.4)	570 (173.7)	1896[44] owned by Writhlington, Huish and Foxcote Colliery Co.,
Kilmersdon	Kilmersdon	51°15′44″N 2°26′11″W / 51.2623°N 2.4364°W	1875	1973[92]	10 6 (3.2)	1582 (482.2)	1896[44] & 1908[45] owned by Kilmersdon Colliery Co.
Lower Writhlington	Writhlington	51°17′41″N 2°25′31″W / 51.2947°N 2.4252°W	1829		10 (3)	1461 (445.3)
Shoscombe	Shoscombe	51°18′23″N 2°24′50″W / 51.3064°N 2.4138°W	c1828	by 1860	10 7 (3.2)	360 (109.7)
Woodborough (also known as Wodborough Old Pit)	east of Radstock	51°18′23″N 2°26′07″W / 51.3064°N 2.4353°W	?	1840s	5 3 (1.6)	426 (129.8)
Upper Writhligton	Radstock	51°17′34″N 2°25′56″W / 51.2929°N 2.4323°W	1805	1972[93]	11 3 (3.4)	942 (287.1)

Norton Hill Collieries

Norton Hill Collieries at Westfield were owned by members of the Beauchamp family such as Sir Frank Beauchamp and his brother Louis Beauchamp ^[94] who owned other collieries and related works on the coalfield at various times.^[95] They were also known as the Beauchamp goldmines as they were the most productive mines in the whole coalfield.

In 1900 a railway linking the colliery to the main Somerset and Dorset Joint Railway was constructed, and sidings laid in 1905 and 1907 which were reconstructed in 1953.^[96]

On 9 April 1908 an explosion approximately 1,500 feet (460 m) underground killed 10 men and boys. As there were no mines rescue teams at that time, the manager and volunteers searched for survivors for 10 days. In 1911, partly as a result of the Norton Hill explosion, Winston Churchill was instrumental in the passing of the Coal Mines Act 1911.^[97]

After nationalisation after World War II the National Coal Board spent £500,000 on modernising the mine's infrastructure to give it the capability for annual production of 315,000 tons, however manpower shortages and geological problems caused the pit to close in 1966.^[29]

Pits of the Norton Hill Collieries

Colliery	Location	Coordinates	Opened	Closed	Shaft diameter (ft in (m))[98]	Max shaft depth (ft (m))[98]	Notes
Norton Hill New	Westfield	51°16′48″N 2°28′52″W / 51.2801°N 2.4810°W	1903[99]	1966[99]	13 6	1503
Norton Hill Old	Westfield	51°16′48″N 2°28′52″W / 51.2801°N 2.4810°W	before 1839[99]	1966[100]	4 6	1247	In 1908 10 men were killed in a major coal dust explosion.[97]

Nettlebridge Valley

Old mine chimney of Oxley's Colliery near Buckland Dinham

There were numerous coal workings in the area from Gurney Slade east to Mells around the villages of Holcombe, Coleford and Stratton-on-the-Fosse. These included at least 52 bell pits, some with deeper shafts and 16 adits.^[101] Some coal may have been mined during Roman times and in the 13th century, making them the earliest coal mines in Somerset, but most development occurred in the 17th century.^[102] Most mining ended in the 19th century,^[103] however Strap Colliery was opened in 1953 as Mendip Colliery and worked until 1969.^[104]

The Vobster Breach colliery had a unique system of long coking ovens which, along with the other buildings, have been designated as a Scheduled monument.^[29][105] The boiler chimney of Oxley's Colliery near Buckland Dinham which operated for a few years in the 1880s is a Grade II listed building.^[106][107]

Pits of the Nettlebridge Valley

Colliery	Location	Coordinates	Opened	Closed	Shaft diameter (ft in (m))[108]	Max shaft depth (ft (m))[108]	Notes
Barlake	Nettlebridge	51°14′03″N 2°30′07″W / 51.2342°N 2.5020°W	before 1819	1870	5 6 (1.7)	435 (132.6)
Bilboa	Mells	51°14′56″N 2°24′53″W / 51.2489°N 2.4147°W	?	?	?	240 (73.2)
Breach	Vobster	51°14′20″N 2°26′00″W / 51.2389°N 2.4333°W	1860	c1880	?	867 (264.2)
Charmborough	Holcombe	51°15′48″N 2°26′52″W / 51.2632°N 2.4478°W	1932[109]	1947[109]	8 (2.43)[110]	?
Coal Barton	Coleford	51°14′55″N 2°27′33″W / 51.2487°N 2.4591°W	?	?	?	?	Scene of a firedamp explosion which killed nine miners in 1869[111]
Edford	Holcombe	51°14′23″N 2°28′24″W / 51.2397°N 2.4734°W	1850s	1915	6 (1.8)	798 (243.2)
Holcombe	Holcombe	51°14′23″N 2°28′24″W / 51.2397°N 2.4734°W	1914	1923	?	?
Luckington	Coleford	51°15′15″N 2°26′16″W / 51.2542°N 2.4377°W	?	?	6 (1.8)	135 (41.4)
Mackintosh	Coleford	51°14′49″N 2°26′10″W / 51.2470°N 2.4362°W	1867[111]	1919[111]	8 5 (2.6)	1620 (493.8)	Merged with Newbury. 1896[44] owned by Westbury Iron Co. Ltd.,
Mells	Mells	51°15′32″N 2°24′43″W / 51.2588°N 2.4120°W	1860s till 1880s[104]	reopened 1909 till 1943[112]	9 (2.7)	540 (164.6)
Morewood Old	Nettlebridge	51°14′38″N 2°30′49″W / 51.2440°N 2.5135°W	before 1824	1860s	4 6 (1.4)	1247 (380)
Morewood New	Nettlebridge	51°14′38″N 2°30′49″W / 51.2440°N 2.5135°W	1860s[104]	1932[104]	9 (2.7)	888 (26.8)
Nettlebridge	Nettlebridge	51°14′03″N 2°30′07″W / 51.2342°N 2.5020°W	before 1831	?	6 (1.8)	705 (214.9)
Newbury	Coleford	51°15′15″N 2°26′16″W / 51.2542°N 2.4377°W	1799[104]	1927[48]	9 (2.7)	720 (219.4)	Merged with Mackintosh. 1896[44] owned by Westbury Iron Co. Ltd., 1908[45] Owned by John Wainwright and Co. Ltd.
New Rock	Stratton-on-the-Fosse	51°15′14″N 2°30′13″W / 51.2539°N 2.5036°W	1819[113]	1968[113]	4 6 (1.4)	1182 (360.3)
Old Newbury	Coleford	51°15′15″N 2°26′16″W / 51.2542°N 2.4377°W	c1710	1790s	?	250 (76.2)
Old Rock	Nettlebridge	51°14′38″N 2°30′13″W / 51.2440°N 2.5035°W	1786	1873	4 6 (1.4)	711 (216.7)
Pitcot	Nettlebridge	51°14′36″N 2°29′37″W / 51.2432°N 2.4935°W	before 1750	c1820s	5 (1.5)	555 (169.2)
Strap (also known as Mendip or Downside Colliery)	Nettlebridge	51°14′29″N 2°30′28″W / 51.2413°N 2.5078°W	1863[104]	1879[104]	10 6 (3.2)	1838 (560.2)	Deepest shaft on the Somerset coalfield. Reopened in 1953 and worked until 1969.[104]
Sweetleaze	Nettlebridge	51°14′29″N 2°30′28″W / 51.2413°N 2.5078°W	before 1858	1879	?	?
Vobster	Vobster	51°14′27″N 2°25′24″W / 51.2408°N 2.4233°W	before 1850s	1884[104]	10 (3)	990 (301.8)	Had nationally unique long coking oven design.[29]

References

1. "A Brief History of the Bristol and Somerset Coalfield". The Mines of the Bristol and Somerset Coalfield. Retrieved 8 October 2010.
2. Green, page 48
3. Green pages 55-59
4. Green page 58
5. Collier page 18
6. Down page 13
7. "Smith's other debt". Geoscientist 17.7 July 2007. The Geological Society. Retrieved 2 January 2013.
8. Fuller, J.G.C.M. (July 2007). "John Strachey, William Smith and the strata of England 1719-1801". Geoscientist. 17 (7).
9. "William Smith 1769 -1839 "The Father of English Geology"". Bath Royal Literary & Scientific Institution. Retrieved 2 January 2013.
10. "William Smith (1769-1839)". University of California Museum of Paleontology. Retrieved 24 January 2012.
11. "William Smith". Natural History Museum. Retrieved 24 January 2012.
12. British Geological Survey 1:50,000 scale geological map sheets 280, Wells, 281 Frome & Special sheet 1:63,360 scale Bristol District
13. William Page (editor) (1906). "Geology". A History of the County of Somerset: Volume 1. Institute of Historical Research. Retrieved 2 January 2012.
14. William Page (editor) (1906). "Romano-British Somerset: Part 2, Bath". A History of the County of Somerset: Volume 1. Institute of Historical Research. Retrieved 2 January 2012.
15. Coysh page 208
16. Collier page 21
17. Collier page 22-23
18. "Mining". High Littleton & Hallatrow History and Parish Records. Retrieved 12 November 2006.
19. Collier page 29
20. University of the West of England, "Bristol Historical Resource: Trade unions"
21. Down page 19
22. Bulley, J. To Mendip for Coal, Proc. of the Somerset Archaeology and Natural History Society 97 1952 pages 46-78
23. Billingsley page 307
24. Coombs
25. Report of the Coal Commission 1871, 3, pii
26. Clew page 10
27. Halse pages 6-10
28. "Radstock's coal mining history". This is Wiltshire. Retrieved 26 November 2011.
29. Gould, Shane (1996). "The Collieries of North Somerset" (PDF). Mining History: the journal of the Peak District Mines Historical Society. 13 (2): 16–26.
30. Thorpe, Andrew. "Frome Divisional Labour Party, 19 1 8- 1949/North Somerset Constituency Labour Party, 1949-1 983:" (PDF). University of Exeter. Retrieved 1 January 2012.
31. "North Somerset Heritage Trust". Archived from the original on 12 October 2006. Retrieved 11 November 2006.
32. "The Vobster area". British Geological Survey. Retrieved 2 January 2013.
33. "Chimney of former coal mine, Buckland Dinham, Somerset". Heritage Explorer. English Heritage. Retrieved 2 January 2013.
34. "The Aggregate Landscape of Somerset: Predicting the Archaeological Resource". English Heritage. Retrieved 2 January 2013.
35. "The Colliers Way (NCN24)". BANES cycling. Archived from the original on 21 October 2006. Retrieved 11 November 2006.
36. "Map". OpenCcyleMap Cycle Map. Retrieved 26 November 2011.
37. "Colliers Way". Sustrans. Retrieved 26 November 2011.
38. "Exhibits". Radstock Museum. Retrieved 1 January 2012.
39. Williams page 2
40. Williams page 6
41. Williams page 9
42. Down pages 56-58
43. Williams page 10
44. "Peak District Mines Historical Society Ltd". Retrieved 8 October 2010.
45. "List of Mines in Great Britain and the Isle of Man, 1908". Coal Mining Resource Centre. Retrieved 26 November 2011.
46. Durham page 95
47. Williams page 34
48. "Colliery lists". The Mines of the Bristol and Somerset Coalfield. Retrieved 8 October 2010.
49. Down pages 60-66
50. Down page 58
51. Down page 60
52. Cornwell page 14
53. Down page 61
54. Down page 65
55. "Monument No 200634". Pastscape National Monument Record. English Heritage. Retrieved 27 November 2011.
56. Down and Warrington pages 96-97
57. Down and Warrington pages 73-78
58. Down and Warrington page 78
59. "Opening of pits fuelled village's coal mining industry". This is Bristol. Retrieved 26 February 2012.
60. "Clutton's Mines". Clutton Village Web site. Retrieved 26 November 2011.
61. Down pages 71-82
62. Clew, Kenneth R. (1970). The Somersetshire Coal Canal and Railways. Newton Abbot: David and Charles. ISBN 0-7153-4792-6.
63. "Paulton conservation area character appraisal" (PDF). Bath and North East Somerset Planning. Retrieved 2 January 2013.
64. Down pages 83-102
65. Cornwell page 15
66. "Camerton Collieries". Pastscape National Monument Record. English Heritage. Retrieved 27 November 2011.
67. "Rural Landscapes — Area 6 Hinton Blewett and Newton St Loe Plateau Lands" (PDF). Bath and North East Somerset Council. pp. 42–46. Retrieved 2 January 2013.
68. Down pages 105-117
69. "Camerton Coal Mines – A Potted History". Camerton Batch. Retrieved 26 November 2011.
70. "Coal mining". Mendip Somerset Ramblers Group. Retrieved 25 November 2012.
71. Sly, Nicola (2010). A grim almanac of Somerset. Stroud: History Press. p. 25. ISBN 9780752458144.
72. "Rural Landscapes: Area 12 Cam and Wellow Brook Valleys" (PDF). Bath and North East Somerset Council. pp. 62–65. Retrieved 2 January 2013.
73. Down pages 118-130
74. Down page 124
75. Shaw, William A., ed. (1904). "Minute Book: January 1661". Calendar of Treasury Books, Volume 1: 1660-1667. Institute of Historical Research. Retrieved 2 January 2012.
76. "Rural Landscapes — Area 8 Farrington Gurney Farmlands". Bath and North East Somerset Council. Retrieved 10 December 2006.
77. Down pages 131-145
78. Cornwell page 94
79. Cornwell pages 96-98
80. Down pages 146-160
81. Clew page 13
82. "Midsomer Norton and Radstock Community Plan" (Word). Bath and North East Somerset Council. Retrieved 2 January 2013.
83. Down pages 161-192
84. Cornwell page 73
85. "3. The Scale of the Industry. 3.1: The Number and Size of the Collieries". Bristol Historical Resource. University of the West of England. Retrieved 2 January 2013.
86. "Rural Areas — Area 15 Norton Radstock Southern Farmlands" (PDF). Bath and North East Somerset Council. pp. 74–76. Retrieved 2 January 2013.
87. "Writhlington SSSI, Somerset" (PDF). English Nature. Retrieved 26 November 2011.
88. "Upper Writhlington Colliery". Pastscape National Monument Record. English Heritage. Retrieved 27 November 2011.
89. Down pages 193-211
90. "History". Parish of Peasedown St John Parish Design Statement. Retrieved 26 November 2011.
91. Cornwell page 10
92. Gould, 1999 page 11
93. "Culttons History". Clutton. Retrieved 21 November 2010.
94. http://www.dmm.org.uk/company/n1019.htm
95. "Norton Hill Colliery Co.". Durham Mining Museum. Retrieved 27 November 2011.
96. "Midsomer Norton". Somerset and Dorset Joint Railway. Retrieved 27 November 2011.
97. Johns, Michael (26 August 2008). "The disaster that changed mining". This is Bristol. Retrieved 27 November 2011.
98. Down pages 215-223
99. Down, C.G. (April 1968). "Narrow Gauge Wagons: Norton Hill Colliery". The Industrial Railway Record. 18: 216–217. Retrieved 27 November 2011.
100. Cornwell pages 88-89
101. "Coal mining". British Geological Survey. Retrieved 27 November 2011.
102. "The Nettlebridge valley". British Geological Survey. Retrieved 27 November 2011.
103. "Mining-related earthworks, Stratton Common, Nettlebridge". Somerset Historic Environment Record. Somerset County Council. Retrieved 26 November 2011.
104. "Minerals and mines". British Geological Survey. Retrieved 27 November 2011.
105. "Vobster Breach Colliery". Pastscape National Monument Record. English Heritage. Retrieved 27 November 2011.
106. "Oxleys Colliery". Pastscape National Monument Record. English Heritage. Retrieved 27 November 2011.
107. "Chimney at NGR ST 7447 5083". Images of England. English Heritage. Retrieved 27 November 2011.
108. Down pages 224-260
109. Gould, 1999 page 55
110. Cornwell page 21
111. "A short history of Coleford". Coleford History. Retrieved 1 January 2012.
112. "The Vobster Area". British Geological Survey. Retrieved 1 January 2012.
113. Cornwell pages 76-77

Bibliography

• Allsop, Niall (1993). The Somersetshire Coal Canal Rediscovered: A Walker's Guide. Bath: Millstream Books. ISBN 978-0-948975-35-6.
• Billingsley, John (1795). General View of the Agriculture of the County of Somerset.
• Clew, Kenneth R. (1970). The Somersetshire Coal Canal and Railways. Newton Abbot: David and Charles. ISBN 978-0-7153-4792-8.
• Collier, Peter (1986). Colliers Way: The Somerset Coalfield. Ex Libris Press. ISBN 978-0-948578-05-2.
• Coombs, Howard (1930). Rev. Arthur N. Bax, ed. Journal of a Somerset Rector, John Skinner, A. M., Antiquary 1772-1839. Parochial affairs of the parish of Camerton, 1822-1832. British Library mss. nos. 33673-33728. London: John Murray. Revised and enlarged edition entitled Journal of a Somerset rector, 1803-1834: parochial affairs of the Parish of Camerton British Museum manuscripts no. 33635-33728 & EG 3099F-3123F. John Murray.
• Cornwell, John (2005). Collieries of Somerset and Bristol. Landmark Publishing Ltd. ISBN 978-1-84306-170-0.
• Coysh, A.W.; Mason, E.J.; Waite, V. (1977). The Mendips. London: Robert Hale Ltd. ISBN 978-0-7091-6426-5.
• Down, C.G.; Warrington, A. J. (2005). The history of the Somerset coalfield. Radstock: Radstock Museum. ISBN 978-0-9551684-0-6.
• Durham, Ian; Durham, Mary (1991). Chew Magna and the Chew Valley in old photographs. Redcliffe Press. ISBN 978-1-872971-61-2.
• Green, G.W. (1992). Bristol and Gloucester Region (Regional Geology Guides) (3rd Ed). Keyworth, Notts: British Geological Survey. ISBN 978-0-11-884482-6.
• Gould, Shane (1999). The Somerset Coalfield. Somerset Industrial Archaeological Society.
• Halse, Roger; Castens, Simon (2000). The Somersetshire Coal Canal: A Pictorial Journey. Bath: Millstream Books. ISBN 978-0-948975-58-5.
• Handley, Chris (2006). Transport & Industrial Development in the Somerset Coalfield. Radstock: Radstock, Midsomer Norton and District Museum Society.
• Williams, W.J. (1976). Coal Mining in Bishop Sutton North Somerset c.1799-1929.
