Precision and recall

Precision and recall

In pattern recognition and information retrieval with binary classification, precision (also called positive predictive value) is the fraction of retrieved instances that are relevant, while recall (also known as sensitivity) is the fraction of relevant instances that are retrieved. Both precision and recall are therefore based on an understanding and measure of relevance.

Suppose a computer program for recognizing dogs in scenes from a video identifies 7 dogs in a scene containing 9 dogs and some cats. If 4 of the identifications are correct, but 3 are actually cats, the program's precision is 4/7 while its recall is 4/9. When a search engine returns 30 pages only 20 of which were relevant while failing to return 40 additional relevant pages, its precision is 20/30 = 2/3 while its recall is 20/60 = 1/3. So, in this case, precision is "how useful the search results are", and recall is "how complete the results are".

In statistics, if the null hypothesis is that all and only the relevant items are retrieved, absence of type I and type II errors corresponds respectively to maximum precision (no false positive) and maximum recall (no false negative). The above pattern recognition example contained 7 − 4 = 3 type I errors and 9 − 4 = 5 type II errors. Precision can be seen as a measure of exactness or quality, whereas recall is a measure of completeness or quantity.

In simple terms, high precision means that an algorithm returned substantially more relevant results than irrelevant ones, while high recall means that an algorithm returned most of the relevant results.

Introduction

In an information retrieval scenario, the instances are documents and the task is to return a set of relevant documents given a search term; or equivalently, to assign each document to one of two categories, "relevant" and "not relevant". In this case, the "relevant" documents are simply those that belong to the "relevant" category. Recall is defined as the number of relevant documents retrieved by a search divided by the total number of existing relevant documents, while precision is defined as the number of relevant documents retrieved by a search divided by the total number of documents retrieved by that search.

In a classification task, the precision for a class is the number of true positives (i.e. the number of items correctly labeled as belonging to the positive class) divided by the total number of elements labeled as belonging to the positive class (i.e. the sum of true positives and false positives, which are items incorrectly labeled as belonging to the class). Recall in this context is defined as the number of true positives divided by the total number of elements that actually belong to the positive class (i.e. the sum of true positives and false negatives, which are items which were not labeled as belonging to the positive class but should have been).

In information retrieval, a perfect precision score of 1.0 means that every result retrieved by a search was relevant (but says nothing about whether all relevant documents were retrieved) whereas a perfect recall score of 1.0 means that all relevant documents were retrieved by the search (but says nothing about how many irrelevant documents were also retrieved).

In a classification task, a precision score of 1.0 for a class C means that every item labeled as belonging to class C does indeed belong to class C (but says nothing about the number of items from class C that were not labeled correctly) whereas a recall of 1.0 means that every item from class C was labeled as belonging to class C (but says nothing about how many other items were incorrectly also labeled as belonging to class C).

Often, there is an inverse relationship between precision and recall, where it is possible to increase one at the cost of reducing the other. Brain surgery provides an obvious example of the tradeoff. Consider a brain surgeon tasked with removing a cancerous tumor from a patient’s brain. The surgeon needs to remove all of the tumor cells since any remaining cancer cells will regenerate the tumor. Conversely, the surgeon must not remove healthy brain cells since that would leave the patient with impaired brain function. The surgeon may be more liberal in the area of the brain she removes to ensure she has extracted all the cancer cells. This decision increases recall but reduces precision. On the other hand, the surgeon may be more conservative in the brain she removes to ensure she extracts only cancer cells. This decision increases precision but reduces recall. That is to say, greater recall increases the chances of removing healthy cells (negative outcome) and increases the chances of removing all cancer cells (positive outcome). Greater precision decreases the chances of removing healthy cells (positive outcome) but also decreases the chances of removing all cancer cells (negative outcome).

Usually, precision and recall scores are not discussed in isolation. Instead, either values for one measure are compared for a fixed level at the other measure (e.g. precision at a recall level of 0.75) or both are combined into a single measure. Examples for measures that are a combination of precision and recall are the F-measure (the weighted harmonic mean of precision and recall), or the Matthews correlation coefficient, which is a geometric mean of the chance-corrected variants: the regression coefficients Informedness (DeltaP') and Markedness (DeltaP).^[1][2] Accuracy is a weighted arithmetic mean of Precision and Inverse Precision (weighted by Bias) as well as a weighted arithmetic mean of Recall and Inverse Recall (weighted by Prevalence).^[1] Inverse Precision and Recall are simply the Precision and Recall of the inverse problem where positive and negative labels are exchanged (for both real classes and prediction labels). Recall and Inverse Recall, or equivalently true positive rate and false positive rate, are frequently plotted against each other as ROC curves and provide a principled mechanism to explore operating point tradeoffs. Outside of Information Retrieval, the application of Recall, Precision and F-measure are argued to be flawed as they ignore the true negative cell of the contingency table, and they are easily manipulated by biasing the predictions.^[1] The first problem is 'solved' by using Accuracy and the second problem is 'solved' by discounting the chance component and renormalizing to Cohen's kappa, but this no longer affords the opportunity to explore tradeoffs graphically. However, Informedness and Markedness are Kappa-like renormalizations of Recall and Precision,^[3] and their geometric mean Matthews correlation coefficient thus acts like a debiased F-measure.

Definition (information retrieval context)

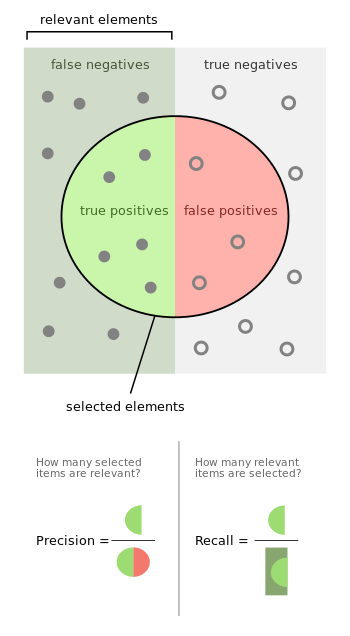

In information retrieval contexts, precision and recall are defined in terms of a set of retrieved documents (e.g. the list of documents produced by a web search engine for a query) and a set of relevant documents (e.g. the list of all documents on the internet that are relevant for a certain topic), cf. relevance. The measures were defined in Perry, Kent & Berry (1955).

Precision

In the field of information retrieval, precision is the fraction of retrieved documents that are relevant to the query:

$${\displaystyle {\text{precision}}={\frac {|\{{\text{relevant documents}}\}\cap \{{\text{retrieved documents}}\}|}{|\{{\text{retrieved documents}}\}|}}}$$

${\displaystyle {\text{precision}}={\frac {|\{{\text{relevant documents}}\}\cap \{{\text{retrieved documents}}\}|}{|\{{\text{retrieved documents}}\}|}}}$

Precision takes all retrieved documents into account, but it can also be evaluated at a given cut-off rank, considering only the topmost results returned by the system. This measure is called precision at n or P@n.

For example for a text search on a set of documents precision is the number of correct results divided by the number of all returned results.

Precision is also used with recall, the percent of all relevant documents that is returned by the search. The two measures are sometimes used together in the F1 Score (or f-measure) to provide a single measurement for a system.

Note that the meaning and usage of "precision" in the field of information retrieval differs from the definition of accuracy and precision within other branches of science and technology.

Recall

Recall in information retrieval is the fraction of the documents that are relevant to the query that are successfully retrieved.

$${\displaystyle {\text{recall}}={\frac {|\{{\text{relevant documents}}\}\cap \{{\text{retrieved documents}}\}|}{|\{{\text{relevant documents}}\}|}}}$$

${\displaystyle {\text{recall}}={\frac {|\{{\text{relevant documents}}\}\cap \{{\text{retrieved documents}}\}|}{|\{{\text{relevant documents}}\}|}}}$

For example for text search on a set of documents recall is the number of correct results divided by the number of results that should have been returned

In binary classification, recall is called sensitivity. So it can be looked at as the probability that a relevant document is retrieved by the query.

It is trivial to achieve recall of 100% by returning all documents in response to any query. Therefore, recall alone is not enough but one needs to measure the number of non-relevant documents also, for example by computing the precision.

Definition (classification context)

For classification tasks, the terms true positives, true negatives, false positives, and false negatives (see Type I and type II errors for definitions) compare the results of the classifier under test with trusted external judgments. The terms positive and negative refer to the classifier's prediction (sometimes known as the expectation), and the terms true and false refer to whether that prediction corresponds to the external judgment (sometimes known as the observation).

Let us define an experiment from P positive instances and N negative instances for some condition. The four outcomes can be formulated in a 2×2 contingency table or confusion matrix, as follows:

		Predicted condition
	Total population	Predicted Condition positive	Predicted Condition negative	Prevalence = Σ Condition positive/Σ Total population
True condition	condition positive	True positive	False Negative (Type II error)	True positive rate (TPR), Sensitivity, Recall, probability of detection = Σ True positive/Σ Condition positive	False negative rate (FNR), Miss rate = Σ False negative/Σ Condition positive
	condition negative	False Positive (Type I error)	True negative	False positive rate (FPR), Fall-out, probability of false alarm = Σ False positive/Σ Condition negative	True negative rate (TNR), Specificity (SPC) = Σ True negative/Σ Condition negative
	Accuracy (ACC) = Σ True positive + Σ True negative/Σ Total population	Positive predictive value (PPV), Precision = Σ True positive/Σ Test outcome positive	False omission rate (FOR) = Σ False negative/Σ Test outcome negative	Positive likelihood ratio (LR+) = TPR/FPR	Diagnostic odds ratio (DOR) = LR+/LR−
		False discovery rate (FDR) = Σ False positive/Σ Test outcome positive	Negative predictive value (NPV) = Σ True negative/Σ Test outcome negative	Negative likelihood ratio (LR−) = FNR/TNR

Terminology and derivations
from a confusion matrix

condition positive (P) the number of real positive cases in the data condition negatives (N) the number of real negative cases in the data true positive (TP) eqv. with hit true negative (TN) eqv. with correct rejection false positive (FP) eqv. with false alarm, Type I error false negative (FN) eqv. with miss, Type II error sensitivity, recall, hit rate, or true positive rate (TPR) ${\displaystyle \mathrm {TPR} ={\frac {\mathrm {TP} }{P}}={\frac {\mathrm {TP} }{\mathrm {TP} +\mathrm {FN} }}}$ specificity or true negative rate (TNR) ${\displaystyle \mathrm {TNR} ={\frac {\mathrm {TN} }{N}}={\frac {\mathrm {TN} }{\mathrm {FP} +\mathrm {TN} }}}$ precision or positive predictive value (PPV) ${\displaystyle \mathrm {PPV} ={\frac {\mathrm {TP} }{\mathrm {TP} +\mathrm {FP} }}}$ negative predictive value (NPV) ${\displaystyle \mathrm {NPV} ={\frac {\mathrm {TN} }{\mathrm {TN} +\mathrm {FN} }}}$ fall-out or false positive rate (FPR) ${\displaystyle \mathrm {FPR} ={\frac {\mathrm {FP} }{N}}={\frac {\mathrm {FP} }{\mathrm {FP} +\mathrm {TN} }}=1-\mathrm {TNR} }$ false discovery rate (FDR) ${\displaystyle \mathrm {FDR} ={\frac {\mathrm {FP} }{\mathrm {FP} +\mathrm {TP} }}=1-\mathrm {PPV} }$ miss rate or false negative rate (FNR) ${\displaystyle \mathrm {FNR} ={\frac {\mathrm {FN} }{P}}={\frac {\mathrm {FN} }{\mathrm {FN} +\mathrm {TP} }}=1-\mathrm {TPR} }$ accuracy (ACC) ${\displaystyle \mathrm {ACC} ={\frac {\mathrm {TP} +\mathrm {TN} }{P+N}}}$ F1 score is the harmonic mean of precision and sensitivity ${\displaystyle F_{1}={\frac {2\mathrm {TP} }{2\mathrm {TP} +\mathrm {FP} +\mathrm {FN} }}}$ Matthews correlation coefficient (MCC) ${\displaystyle \mathrm {MCC} ={\frac {\mathrm {TP} \times \mathrm {TN} -\mathrm {FP} \times \mathrm {FN} }{\sqrt {(\mathrm {TP} +\mathrm {FP} )(\mathrm {TP} +\mathrm {FN} )(\mathrm {TN} +\mathrm {FP} )(\mathrm {TN} +\mathrm {FN} )}}}}$ Informedness or Bookmaker Informedness (BM) ${\displaystyle \mathrm {BM} =\mathrm {TPR} +\mathrm {TNR} -1}$ Markedness (MK) ${\displaystyle \mathrm {MK} =\mathrm {PPV} +\mathrm {NPV} -1}$ Sources: Fawcett (2006), Powers (2011), and Ting (2011) [4] [1] [5]

Precision and recall are then defined as:^[6]

$${\displaystyle {\text{Precision}}={\frac {tp}{tp+fp}}\,}$$

${\displaystyle {\text{Precision}}={\frac {tp}{tp+fp}}\,}$

$${\displaystyle {\text{Recall}}={\frac {tp}{tp+fn}}\,}$$

${\displaystyle {\text{Recall}}={\frac {tp}{tp+fn}}\,}$

Recall in this context is also referred to as the true positive rate or sensitivity, and precision is also referred to as positive predictive value (PPV); other related measures used in classification include true negative rate and accuracy.^[6] True negative rate is also called specificity.

$${\displaystyle {\text{True negative rate}}={\frac {tn}{tn+fp}}\,}$$

${\displaystyle {\text{True negative rate}}={\frac {tn}{tn+fp}}\,}$

$${\displaystyle {\text{Accuracy}}={\frac {tp+tn}{tp+tn+fp+fn}}\,}$$

${\displaystyle {\text{Accuracy}}={\frac {tp+tn}{tp+tn+fp+fn}}\,}$

Probabilistic interpretation

It is possible to interpret precision and recall not as ratios but as probabilities:

• Precision is the probability that a (randomly selected) retrieved document is relevant.
• Recall is the probability that a (randomly selected) relevant document is retrieved in a search.

Note that the random selection refers to a uniform distribution over the appropriate pool of documents; i.e. by randomly selected retrieved document, we mean selecting a document from the set of retrieved documents in a random fashion. The random selection should be such that all documents in the set are equally likely to be selected.

Note that, in a typical classification system, the probability that a retrieved document is relevant depends on the document. The above interpretation extends to that scenario also (needs explanation).

Another interpretation for precision and recall is as follows. Precision is the average probability of relevant retrieval. Recall is the average probability of complete retrieval. Here we average over multiple retrieval queries.

F-measure

A measure that combines precision and recall is the harmonic mean of precision and recall, the traditional F-measure or balanced F-score:

$${\displaystyle F=2\cdot {\frac {\mathrm {precision} \cdot \mathrm {recall} }{\mathrm {precision} +\mathrm {recall} }}}$$

${\displaystyle F=2\cdot {\frac {\mathrm {precision} \cdot \mathrm {recall} }{\mathrm {precision} +\mathrm {recall} }}}$

This measure is approximately the average of the two when they are close, and is more generally the harmonic mean, which, for the case of two numbers, coincides with the square of the geometric mean divided by the arithmetic mean. There are several reasons that the F-score can be criticized in particular circumstances due to its bias as an evaluation metric.^[1] This is also known as the $F_{1}$ measure, because recall and precision are evenly weighted.

It is a special case of the general $F_{\beta }$ measure (for non-negative real values of $\beta$):

$${\displaystyle F_{\beta }=(1+\beta ^{2})\cdot {\frac {\mathrm {precision} \cdot \mathrm {recall} }{\beta ^{2}\cdot \mathrm {precision} +\mathrm {recall} }}}$$

${\displaystyle F_{\beta }=(1+\beta ^{2})\cdot {\frac {\mathrm {precision} \cdot \mathrm {recall} }{\beta ^{2}\cdot \mathrm {precision} +\mathrm {recall} }}}$

Two other commonly used $F$ measures are the $F_{2}$ measure, which weights recall higher than precision, and the $F_{0.5}$ measure, which puts more emphasis on precision than recall.

The F-measure was derived by van Rijsbergen (1979) so that $F_{\beta }$ "measures the effectiveness of retrieval with respect to a user who attaches $\beta$ times as much importance to recall as precision". It is based on van Rijsbergen's effectiveness measure ${\displaystyle E_{\alpha }=1-{\frac {1}{{\frac {\alpha }{P}}+{\frac {1-\alpha }{R}}}}}$, the second term being the weighted harmonic mean of precision and recall with weights ${\displaystyle (\alpha ,1-\alpha )}$. Their relationship is ${\displaystyle F_{\beta }=1-E_{\alpha }}$ where $\alpha ={\frac {1}{1+\beta ^{2}}}$.

Limitations as goals

There are other parameters and strategies for performance metric of information retrieval system, such as the area under the precision-recall curve (AUC).^[7]

For web document retrieval, if the user's objectives are not clear, the precision and recall can't be optimized. As summarized by Lopresti,^[8]

Browsing is a comfortable and powerful paradigm (the serendipity effect).

• Search results don't have to be very good.
• Recall? Not important (as long as you get at least some good hits).
• Precision? Not important (as long as at least some of the hits on the first page you return are good).

See also

• Uncertainty coefficient, also called proficiency
• Sensitivity and specificity
