Space Telescope Imaging Spectrograph

STIS under construction, 1996
STIS camera images Saturn aurora

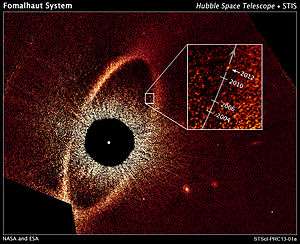

STIS images the Fomalhaut system (January 8, 2013) (NASA).

The Space Telescope Imaging Spectrograph (STIS) is a spectrograph, also with a camera mode, installed on the Hubble Space Telescope. Aerospace engineer Bruce Woodgate of the Goddard Space Flight Center was the principal investigator and creator of the STIS.[1][2] It operated continuously from 1997 until a power supply failure in August 2004.[3] After repairs, it began operating again in 2009. The spectrograph has made many important observations, including the first spectrum of the atmosphere of an extrasolar planet, HD 209458b.

The STIS was installed on Hubble in 1997 during its second servicing mission (STS-82) by Mark Lee and Steven Smith, replacing the High Resolution Spectrograph and the Faint Object Spectrograph. It was designed to operate for five years. On August 3, 2004 an electronic failure rendered STIS inoperable, ending its use 2 years beyond its predicted lifespan. In order to bring it back to operational status, the instrument was repaired by space shuttle astronauts during STS-125, Servicing Mission 4, launched on May 11, 2009.[4] The crew did a long (many hour) EVA to repair the instrument.[5]

Congratulations, you brought STIS back to life
— Astronaut J. Grunsfield, 2009 [6]

Design

The STIS has three 1024×1024 detector arrays. The first is a charge-coupled device with a 52×52 arc-second field of view, covering the visible and near-infrared spectrum from 200 nm to 1030 nm. The other two detectors are Multi-Anode Multichannel Arrays, each with a 25×25 arc-second field of view. One is Cs2Te, and covers the near-UV between 160 nm and 310 nm. The other is CsI and covers the far-UV between 115 nm and 170 nm.[7] STIS is both a spectrograph and an imaging camera, and is focused on ultraviolet light.[8]

Timeline

See also

References

  1. ↑ Tanglao, Leezel (2014-05-01). "Inventor of the camera used on Hubble telescope has died". CBS News. Retrieved 2014-05-18.
  2. ↑ "Tributes paid to man who changed the face of space". Eastbourne Herald. 2014-05-09. Retrieved 2014-05-18.
  3. ↑
  4. ↑ "Space Telescope Operations Control Center — Flight Day 7". NASA. May 17, 2009.
  5. ↑
  6. ↑
  7. ↑ "STIS Instrument Detectors". Space Telescope Science Institute.
  8. ↑
  9. ↑
  10. ↑
  11. ↑
  12. ↑
  13. ↑
  14. ↑
Wikimedia Commons has media related to Space Telescope Imaging Spectrograph.
